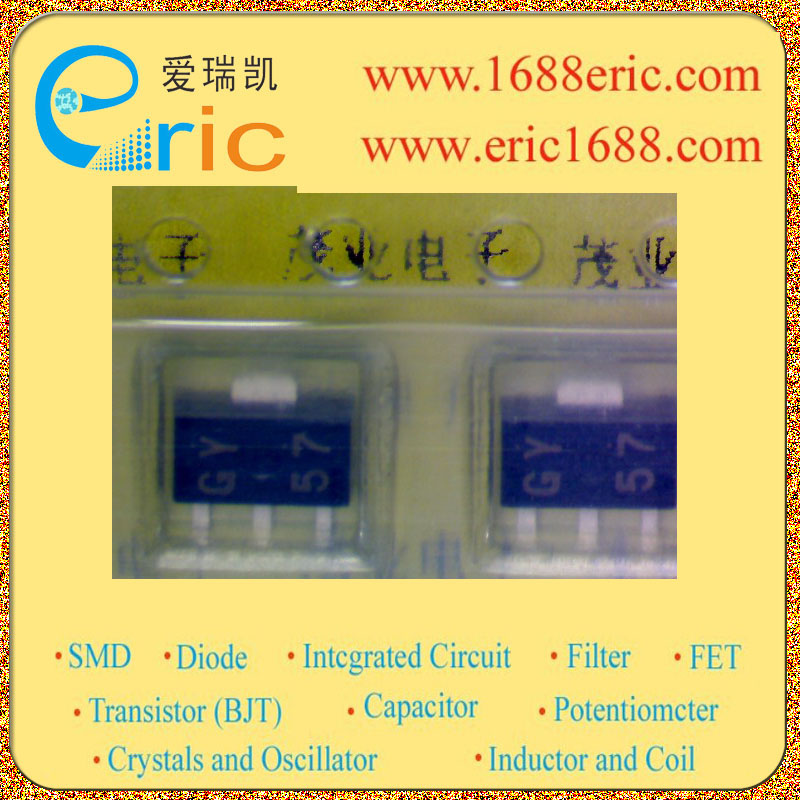

2SD2403 GY 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
80V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
60V |
| 集电极连续输出电流IC
Collector Current(IC) |
3A |
| 截止频率fT
Transtion Frequency(fT) |
130MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
160~320 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
150mV/0.15V |
| 耗散功率Pc
Power Dissipation |
2W |
| Description & Applications |
NPN SILICON EPITAXIAL TRANSISTOR FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING FEATURES ? High current capacitance ? Low collector saturation voltage ? Complementary transistor with 2SB1572 |
| 描述与应用 |
NPN硅外延晶体管低频功率放大器和中速切换 特点 ?高电流电容 ?低集电极饱和电压 ?互补晶体管2SB1572 |
