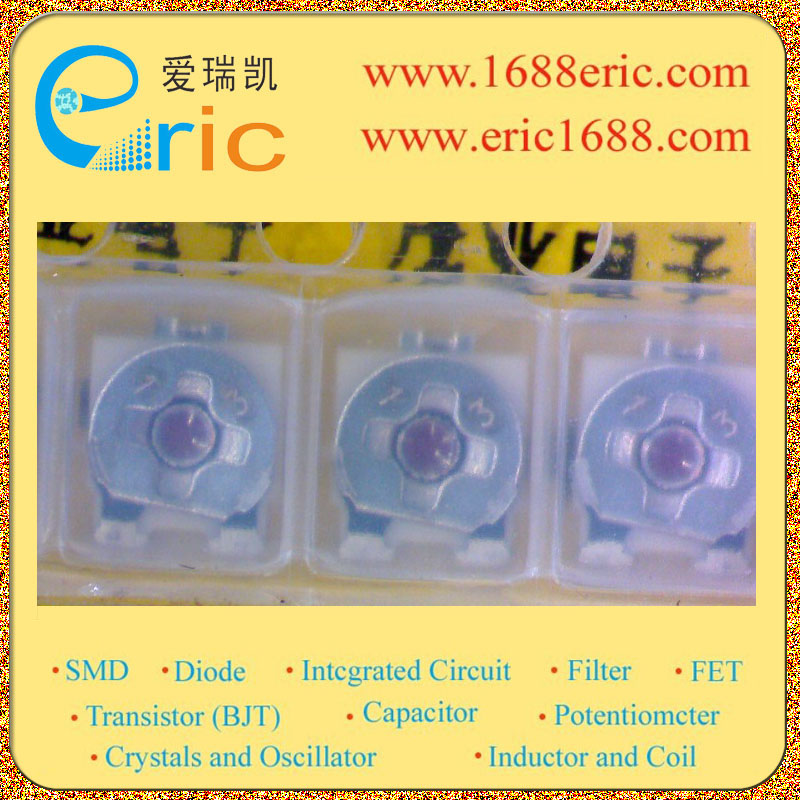

EVM3WSX80B13 13 的参数 |
| 电阻值
Resistance |
1KΩ/Ohm |
| 额定功率
Power |
0.15W |
| 容差
Tolerance |
±25% |
| 温度系数
Temperature Coefficient |
±250 ppm/°C |
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
● 3 mm Square Low-Profile SMT Trimmer Potentiometers (Cermet, Open Frame Type) ●Low-profile 0.95 mm (1.1 mm max.) ● High reliability realized by cermet element ● Excellent mountability by the plate shape fittable for each placing-head ● Conforming to JIS C5260-1:1999 ● Recommended Applications ● Audio visual equipment, Office Automation equipment, Communication equipment ● Other general electronic equipments |
| 描述与应用 |
●3毫米薄型贴片微调电位器 （陶瓷，开架式） ●薄型0.95毫米（1.1毫米最大。） ●高可靠性实现了金属陶瓷元件 ●优良的装载性嵌合板形状为每个配售头 ●符合JIS电子设备用电位计-1：1999 ●推荐应用 ●影音设备，办公自动化设备，通信设备 ●其他一般的电子设备 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| EVM3WSX80B12 |
12 |
Panasonic |
05+NOPB |
3X3-100R |
15000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B13 |
13 |
Panasonic |
11+ |
3X3-1K |
15000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B13 |
13 |
Panasonic |
11+ROHS21800 |
3X3-1K |
167800 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B14 |
14 |
Panasonic |
05+NOPB |
3X3-10K |
377388 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B15 |
15 |
Panasonic |
05+ |
3X3-100K |
1635 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B16 |
16 |
Panasonic |
16+ROHS3K |
3X3-1M |
6500 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B14 |
14 |
Panasonic |
05+ |
3X3-10K |
21000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM3WSX80B15 |
15 |
Panasonic |
05+ |
3X3-100K |
0 |
电阻Resistor |
查看 |
|
|
|
