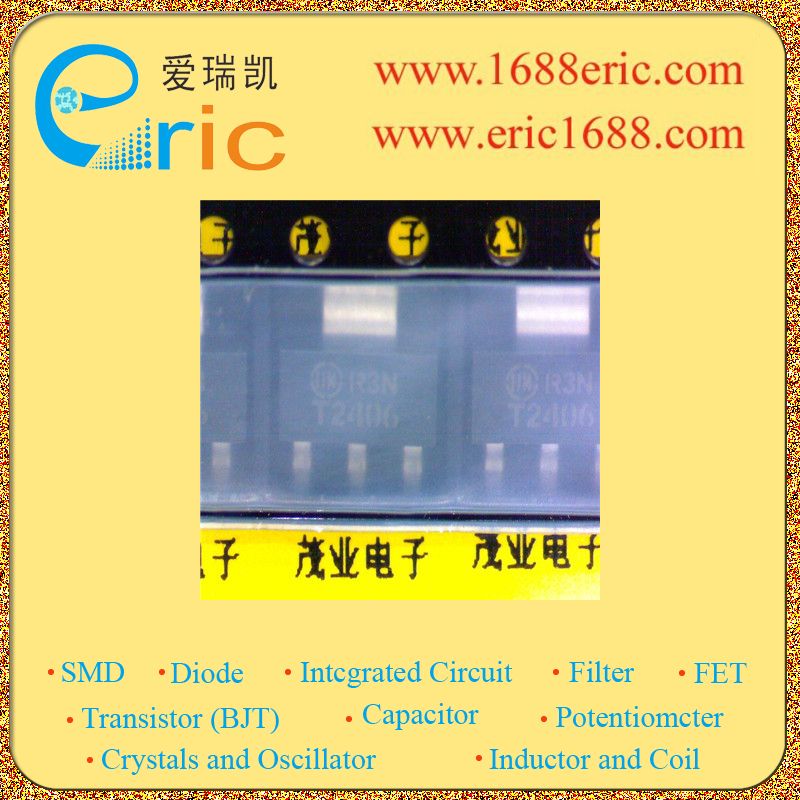

MMFT2406T1 T2406 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
240V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
| 最大漏极电流Id
Drain Current |
700mA/0.7A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
6.0Ω/Ohm @500mA,10V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
0.8-2.0V |
| 耗散功率Pd
Power Dissipation |
150mW/0.15W |
| Description & Applications |
Power MOSFET 700 mA, 240 V, N?Channel, SOT?223 This Power MOSFET is designed for high speed, low loss power switching applications such as switching regulators, converters, solenoid and relay drivers. The device is housed in the SOT?223 package which is designed for medium power surface mount applications. ? Silicon Gate for Fast Switching Speeds ? High Voltage ? 240 Vdc ? Low Drive Requirement ? The SOT?223 Package can be soldered using wave or reflow. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die. ? Pb?Free Packages are Available |
| 描述与应用 |
功率MOSFET N通道，240 V，700毫安，SOT-223 这是专为高速，低损耗电源功率MOSFET 开关稳压器，转换开关应用，如， 电磁阀和继电器驱动器。该器件采用SOT-223 包是专为中等功率表面贴装应用。 ?硅栅快速开关速度 ?高电压 - 240 VDC ?低驱动要求 ?SOT-223包装可以使用波或回流焊接。 所形成的线索在焊接热应力吸收， 消除电路小片损坏的可能性。 ?无铅包可用 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MMFT1N10ET1 |
1N10 |
ON |
05+ |
SOT-223/SC-73/TO261-4 |
20 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT2406T1 |
T2406 |
ON |
05+ |
SOT-223/SC-73/TO261-4 |
12440 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT2955(MJD2955) |
2955E |
ON |
05+ |
SOT-223/TO-261AA |
0 |
三极管Bipolar Junction Transistors(BJT)-PNP |
查看 |
| MMFT3055ELT1 |
3055L |
ON |
05+ |
SOT-223/SC-73/TO261-4 |
0 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT3055VT1 |
V3055 |
ON |
05+ |
SOT-223/SC-73/TO261-4 |
785 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT6661 |
T6661 |
JAT |
05+ |
SOT-223 |
50 |
未分类 |
查看 |
| MMFT960T1 |
FT960 |
ON |
03+ |
SOT-223/SC-73/TO261-4 |
0 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT2406T1 |
T2406 |
ON |
05+ |
SOT-223/SC-73/TO261-4 |
0 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT107T1 |
FT107 |
ON |
05+ |
SOT-23/SC-59 |
0 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
| MMFT3055ET1 |
3055 |
ON |
05+ |
SOT-223/SC-73/TO261-4 |
390 |
场效应管FET-MOSFET-N沟道MOSFET N-Channel |
查看 |
|
|
|
