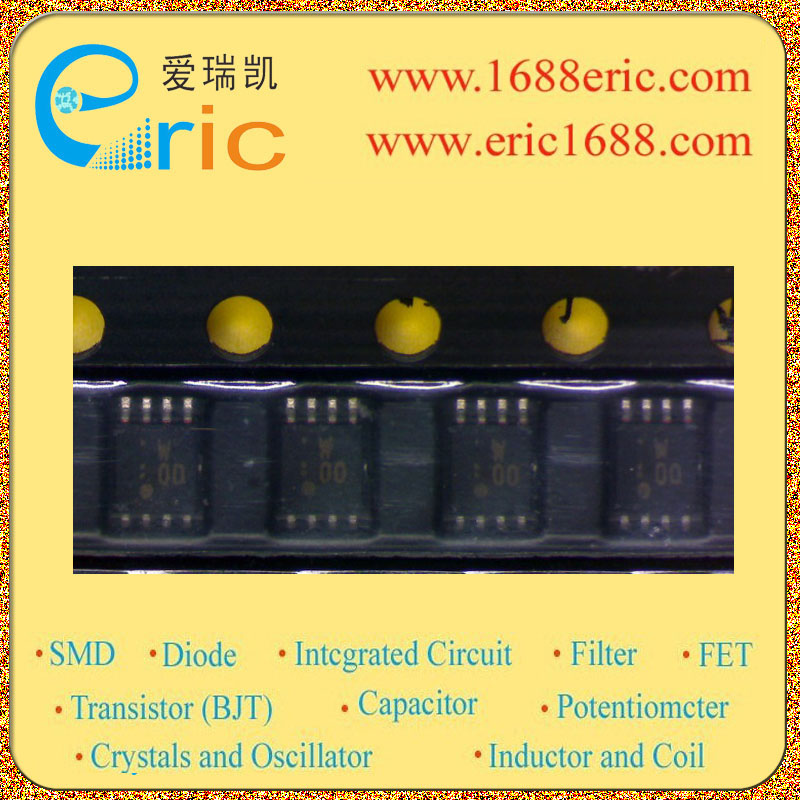

TC7W00FK W00 的参数 |
| 逻辑类型
Logic Type |
与非门 NAND Gate |
| 电路数
Number of Circuits |
2 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2v~6v |
| 静态电流Iq
Current - Quiescent (Max) |
1μA |
| 输出高，低电平电流
Current - Output High, Low |
-5.2mA,5.2mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.8V |
| 高逻辑电平
Logic Level - High |
1.5V~4.2V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
13nS @ 6V，50pF |
| Description & Applications |
DUAL 2-INPUT NAND GATE ;High Speed : tpd = 6ns (typ.) at VCC = 5V ? Low power dissipation : ICC = 1μA (max) at Ta = 25°C ? High noise immunity : VNIH = VNIL = 28% VCC (min) ? Output drive capability : 10 LSTTL Loads ? Symmetrical Output Impedance : |IOH| = IOL= 4mA (min) ? Balanced propagation delays : tpLH ≒ tpHL ? Wide operating voltage range : VCC = 2 to 6 V |
| 描述与应用 |
双2输入与非门;高速：TPD =6ns的VCC = 5V时（典型值） ?低功耗：ICC=1μA（最大值）在Ta= 25°C ?高抗干扰性：VNIH= VNIL=28％VCC （分钟） ?输出驱动能力：10输入通道负载 ?对称的输出阻抗：| IOH|：IOL=4毫安（分钟） ?平衡传输时延：TPLH≒TPHL ?宽工作电压范围：VCC=2到6 V |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7W00F |
7W00F |
TOSHIBA |
05+ |
FM8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7W00F |
7W00 |
TOSHIBA |
05+ |
FM8 |
7700 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7W00FK |
W00 |
TOSHIBA |
13+ROHS3KM |
US8 |
6000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7W00FU |
7W00 |
TOSHIBA |
04+ |
SM8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7W00FU |
7W00 |
TOSHIBA |
05+ |
SM8 |
35680 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7W00FK |
W00 |
TOSHIBA |
1335+rohs |
US8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
