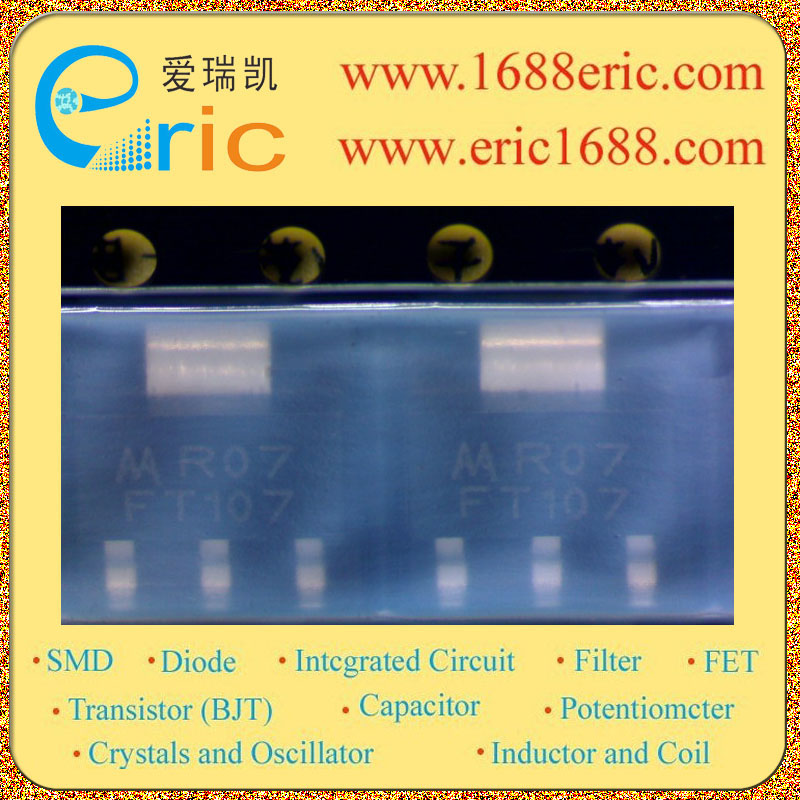

MMFT107T1 FT107 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
200V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
| 最大漏极电流Id
Drain Current |
250mA/0.25A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.014Ω/Ohm @200mA,10V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
1.0-3.0V |
| 耗散功率Pd
Power Dissipation |
800mW/0.8W |
| Description & Applications |
Power MOSFET 250 mA, 200 Volts N?Channel SOT?223 This Power MOSFET is designed for high speed, low loss power switching applications such as switching regulators, dc?dc converters, solenoid and relay drivers. The device is housed in the SOT?223 package which is designed for medium power surface mount applications. ? Silicon Gate for Fast Switching Speeds ? Low Drive Requirement ? The SOT–223 Package can be soldered using wave or reflow. The formed leads absorb thermal stress during soldering eliminating the possibility of damage to the die. |
| 描述与应用 |
功率MOSFET 250毫安，200伏特 N沟道SOT-223 这是专为高速，低损耗电源功率MOSFET 开关应用，如开关稳压器，DC-DC转换器， 电磁阀和继电器驱动器。该器件采用SOT-223 包是专为中等功率表面贴装应用。 ?硅栅快速开关速度 ?低驱动要求 ?SOT-223包装可以使用波或回流焊接。 所形成的线索在焊接热应力吸收 消除电路小片损坏的可能性 |
