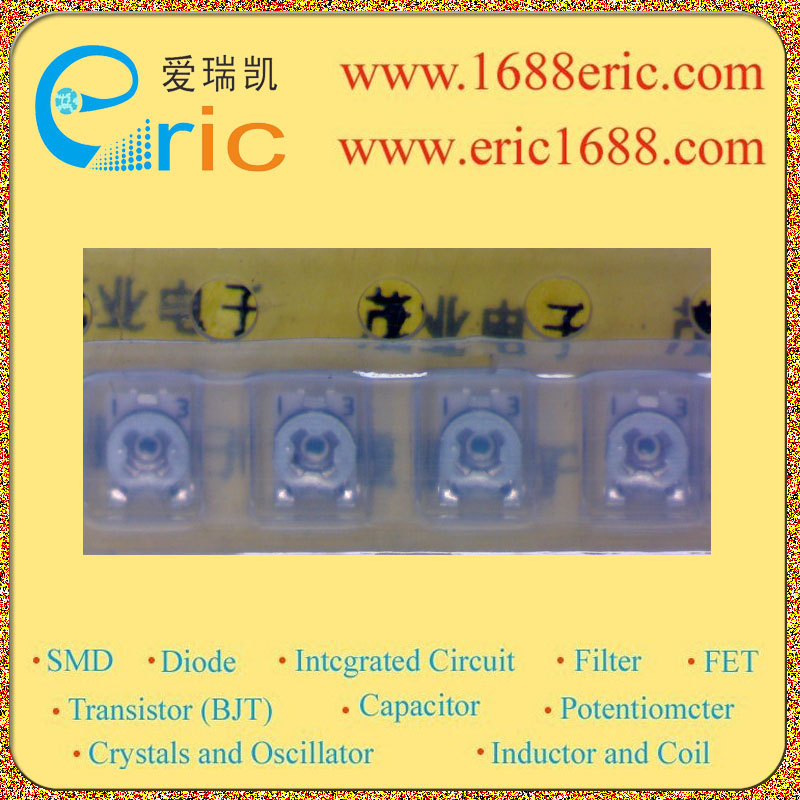

MVR21HXBRN102 13 的参数 |
| 电阻值
Resistance |
1KΩ/Ohm |
| 额定功率
Power |
0.15w |
| 容差
Tolerance |
±25% |
| 温度系数
Temperature Coefficient |
|
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
Chip trimmer potentiometers Features 1) Extremely small size and light weight facilitate the assembly of light, thinner, and smaller equipment. 2) Close match between wiper and resistive element reduces wiper noise. 3) Ruthenium oxide resistor material, with superb stability and resistance to humidity and the elements, offers the same outstanding reliability of our existing product (MVR22). 4) Open design for reflow soldering. 5) Cross groove for easy adjustment. 6) Protective film prevents short circuits due to terminal contact. 7) ROHM resistors have approved ISO-9001 / ISO/TS 16949 certification. |
| 描述与应用 |
贴片微调电位器 特点 ● 体积小，重量轻，便于组装轻，更薄，更小的设备。 ● 氧化钌电阻材料，具有极好的稳定性和耐湿性的元素，提供了相同的 卓越的可靠性我们现有产品（MVR22）的。 ● 开放式设计回流焊。 ● 十字槽，便于调节。 ● 保护膜防止短路，由于终端接触。 ● ROHM电阻已通过ISO-9001/ ISO/ TS 16949认证。 |
