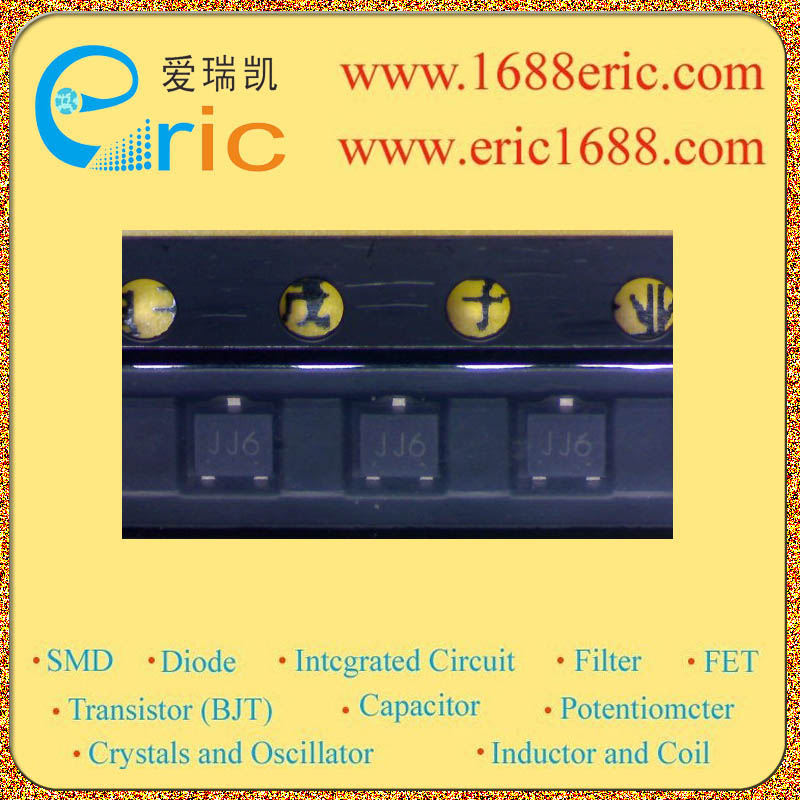

SSM3J113TU JJ6 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
-20V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
12V |
| 最大漏极电流Id
Drain Current |
-1.7A |
| 源漏极导通电阻Rds
Drain-Source On-State
Resistance |
0.129Ω @-650mA,-4V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
-0.5V--1.1V |
| 耗散功率Pd
Power Dissipation |
800mW/0.8W |
| Description & Applications |
High Speed Switching Applications ?2.0V drive ?Low on-resistance: Ron = 449m? (max) (@VGS = ?2.0 V) Ron = 249m? (max) (@VGS = ?2.5 V) Ron = 169m? (max) (@VGS = ?4.0 V) |
| 描述与应用 |
高速开关应用 ?2.0V驱动 ?低导通电阻RON =449mΩ（最大）（@ VGS=-2.0 V） 罗恩=249mΩ（最大）（@ VGS= -2.5 V） RON =169mΩ（最大）（@ VGS=-4.0 V） |
