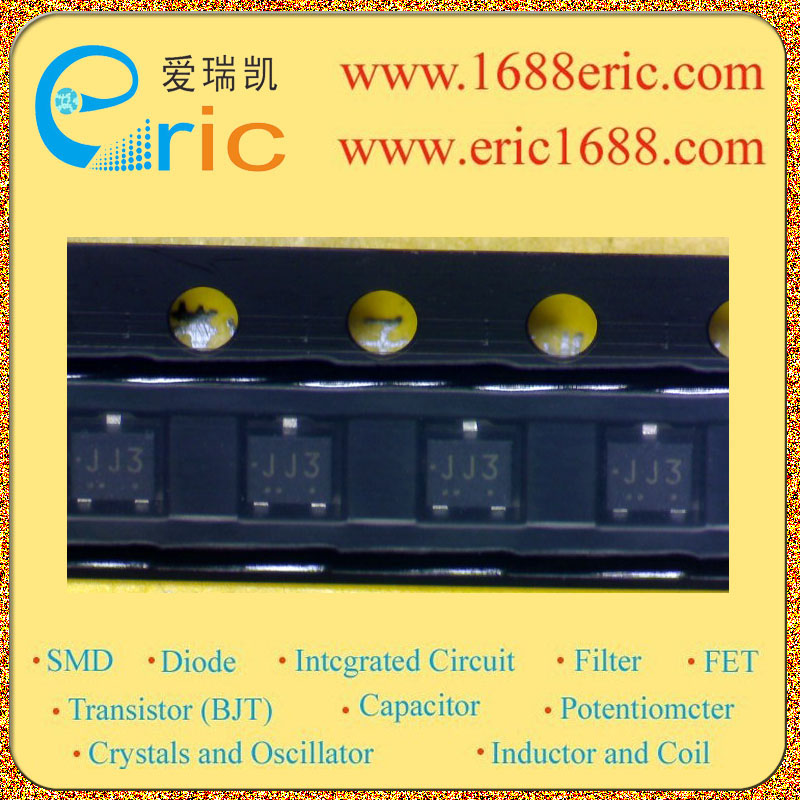

SSM3J110TU JJ3 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
-12V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
8V |
| 最大漏极电流Id
Drain Current |
-2.3A |
| 源漏极导通电阻Rds
Drain-Source On-State
Resistance |
0.072Ω @-1A,-4V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
-0.3V-1.0V |
| 耗散功率Pd
Power Dissipation |
800mW/0.8W |
| Description & Applications |
High Speed Switching Applications ? 1.8V drive ? Low on-resistance: Ron = 240m? (max)(@VGS = ?1.8 V) Ron = 145m? (max) (@VGS = ?2.5 V) Ron = 94m? (max) (@VGS = ?4.0 V) |
| 描述与应用 |
高速开关应用 ?1.8V驱动 ?低导通电阻RON =240mΩ（最大）（@ VGS=-1.8 V） 罗恩=145mΩ（最大）（@ VGS= -2.5 V） RON =94mΩ（最大）（@ VGS=-4.0 V） |
