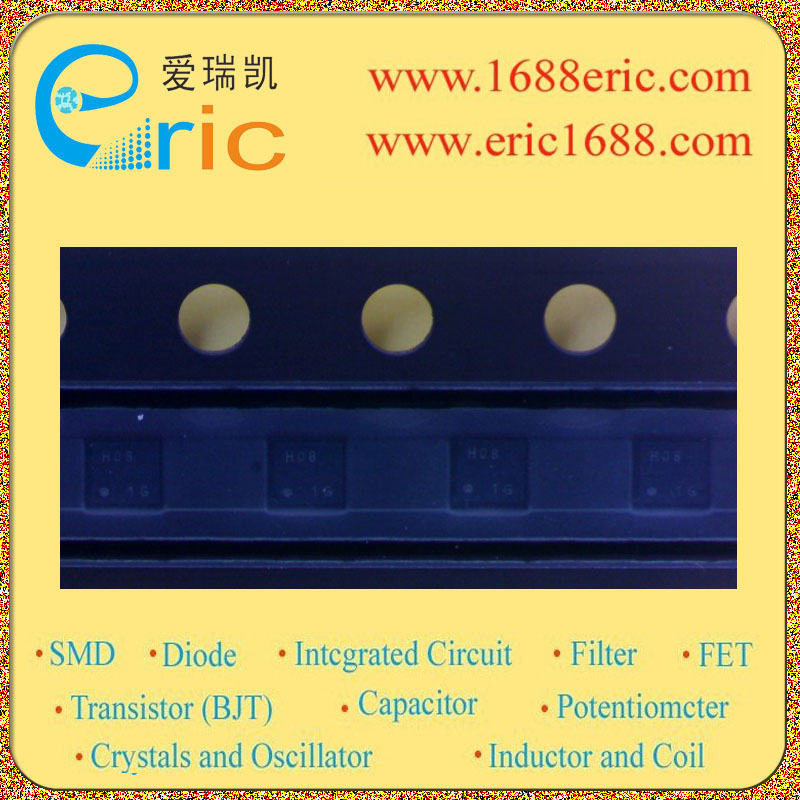

TC7WH08FC H34 的参数 |
| 逻辑类型
Logic Type |
与门 AND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
2μA |
| 输出高，低电平电流
Current - Output High, Low |
-25mA,25mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.65V |
| 高逻辑电平
Logic Level - High |
1.5v~3.85v |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
4.3ns @ 5V，15pF |
| Description & Applications |
Dual 2-Input AND Gate ;High speed operation : tpd = 4.3ns (typ.) at VCC = 5V, CL = 15pF ? Low power dissipation : ICC = 2μA (max) at Ta = 25°C ? High noise immunity : VNIH = VNIL = 28% VCC (min) ? Operating voltage range : VCC = 2 to 5.5 V ? 5.5-V tolerant inputs |
| 描述与应用 |
双2输入与门;高速：TPD=3.8ns电源VCC= 5 V（典型值） ?低功耗：ICC=2μA（最大值）在Ta= 25°C ?高噪声，免疫力：VNIH= VNIL=28％VCC（最小） ?工作电压范围：VCC（opr.）=2?5.5V ?5.5-V宽容的投入。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7WH08FK |
WH08 |
TOSHIBA |
05+ROHS |
US8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7WH08FU |
H08 |
TOSHIBA |
05+ |
SM8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7WH08FU |
H08 |
TOSHIBA |
06NOPB2515 |
SM8 |
2850 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7WH08FK |
WH08 |
TOSHIBA |
10+ROHS |
US8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7WH08FC |
H34 |
TOSHIBA |
11+ROHS |
CST8 |
140000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
