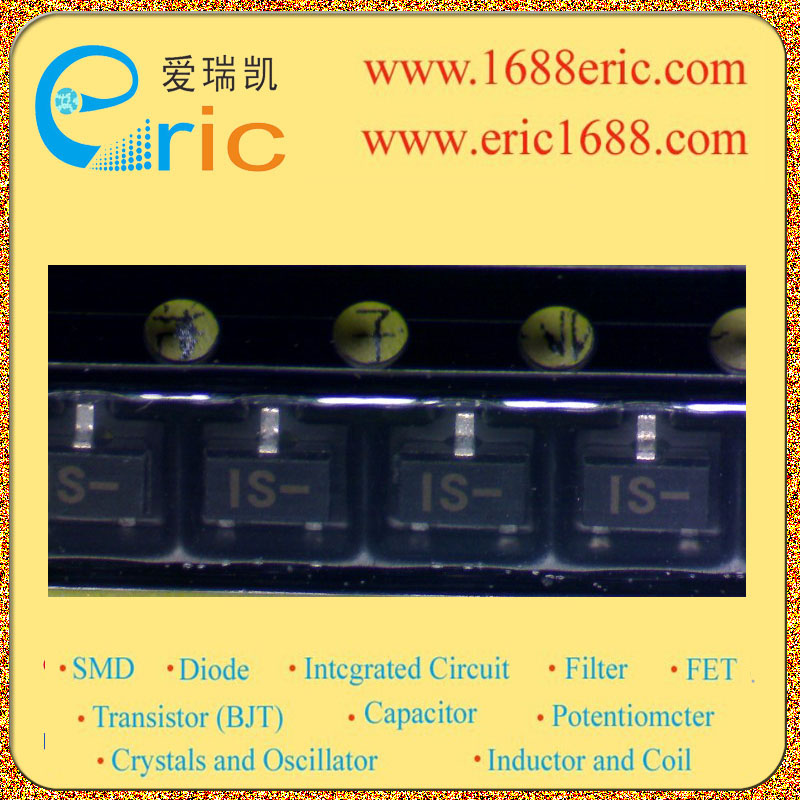

2SC3513 IS 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
11V |
| 集电极连续输出电流IC
Collector Current(IC) |
50mA |
| 截止频率fT
Transtion Frequency(fT) |
6Ghz |
| 直流电流增益hFE
DC Current Gain(hFE) |
50~250 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
150mW/0.15W |
| Description & Applications |
NPN Silicon epitaxial Transistors VHF~UHF wide band amplifier |
| 描述与应用 |
NPN硅外延晶体管 VHF?UHF宽的频段放大器 |
