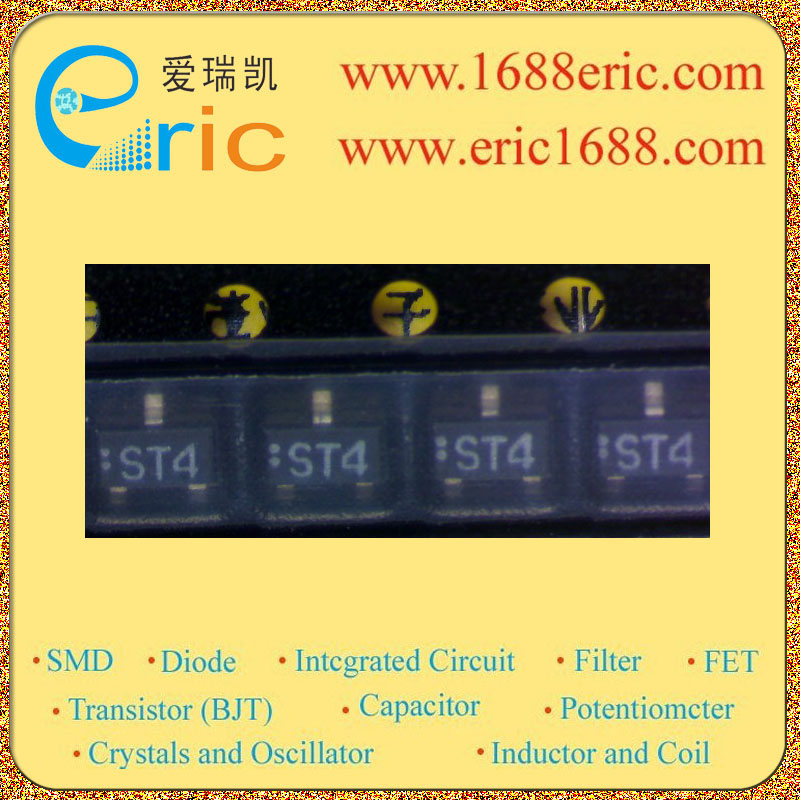

2SC4453-4 ST4 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
40V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
15V |
| 集电极连续输出电流IC
Collector Current(IC) |
200mA/0.2A |
| 截止频率fT
Transtion Frequency(fT) |
750MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~200 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
130mV/0.13V |
| 耗散功率Pc
Power Dissipation |
200mW/0.2W |
| Description & Applications |
NPN epitaxial planer Silicon transistor High-Speed Switching Applications Fast switching speed Low collector saturation voltage High gain-bandwidth product Small collector capaity Very Small-sized package peimitting the 2SC4453-applied sets to be made samll and slim |
| 描述与应用 |
NPN外延刨床硅的晶体管 高速开关应用 开关速度快 低集电极饱和电压 高增益带宽产品 集电极容量小 非常小的封装允许2SC4453的应用设置制得微小和轻薄 |
