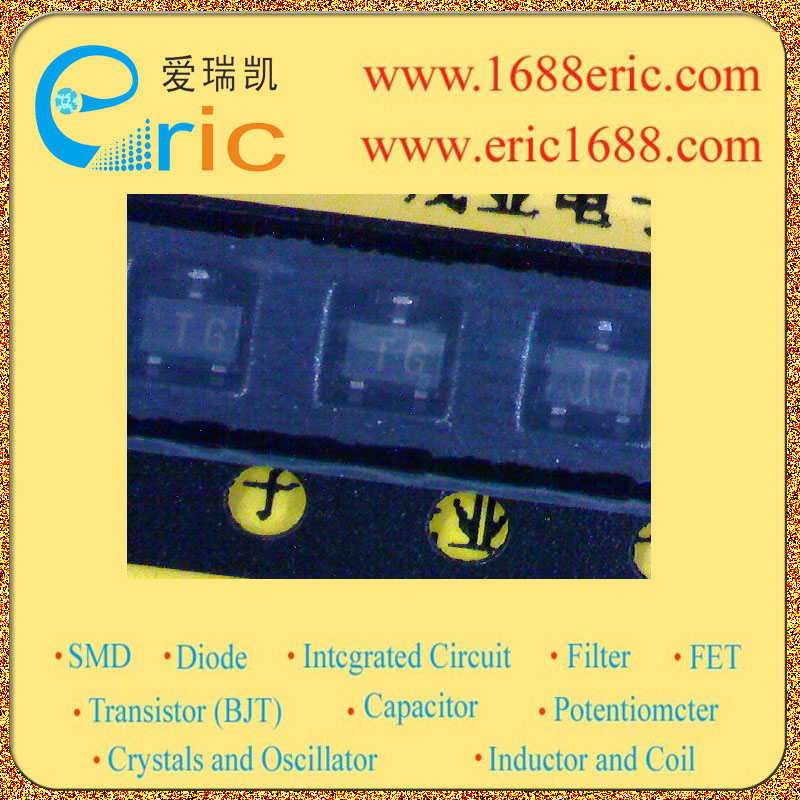

2SK882-gr TG 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
20v |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-20v |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
6~14ma |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
-2.5v |
| 耗散功率Pd
Power Dissipation |
100mW/0.1W |
| Description & Applications |
?Silicon N-Channel Junction FET FM Tuner, VHF RF Amplifier Applications ? Low reverse transfer capacitance: Crss = 0.025 pF (typ.) ? Low noise figure: NF = 1.7dB (typ.) ? High power gain: Gps = 28dB (typ.) ? Recommend operation voltage: 5~15 V |
| 描述与应用 |
?硅N沟道结型场效应管 FM调谐器，甚高频射频放大器应用 ?低反向传输电容：CRSS= 0.025 PF（典型值） ?低噪声系数：NF=1.7分贝（典型值） ?高功率增益：GPS=28分贝的（典型值） ?推荐工作电压：5?15 V |
