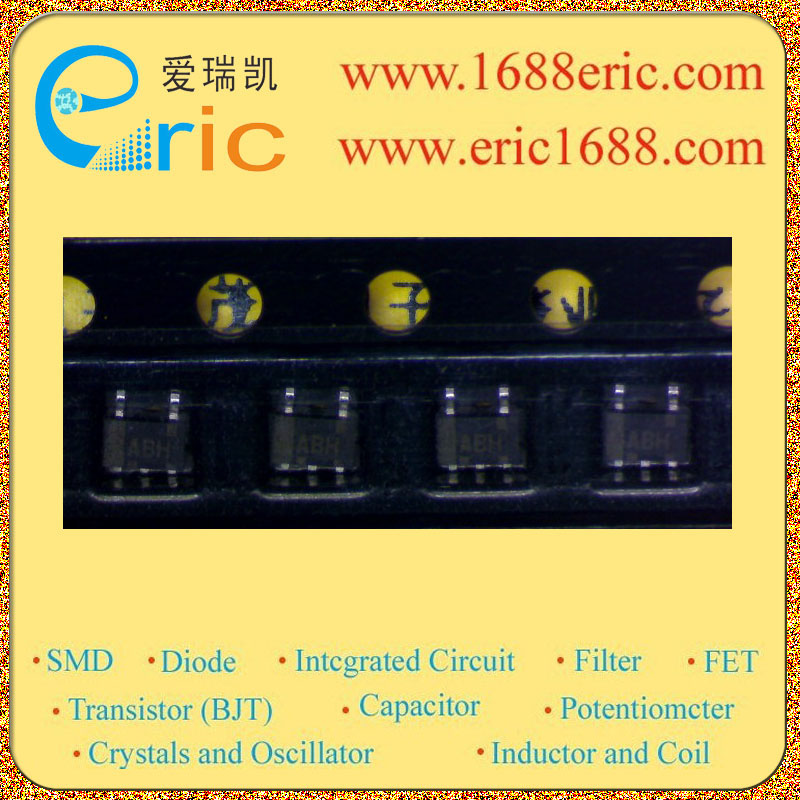

AHC1G02HDCKR ABH 的参数 |
| 逻辑类型
Logic Type |
或非门 NOR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.3V~1.1V |
| 高逻辑电平
Logic Level - High |
1.7V~4.4V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
3.9ns @ 3.0V，15pF |
| Description & Applications |
single 2-input positive-nor gate;Features Operating range 2V to 5.5V Vcc Switching speed typ 3.9ns(@Vcc=3.0V,CL=15pF) All inputs Vih(max)=5.5V(@Vcc=0 to 5.5V) 5 pin DBV package 5 pin DCK package |
| 描述与应用 |
单2输入正或非门;特性 工作范围2V至5.5V的VCC 典型开关速度3.9ns（VCC= 3.0V，CL=15PF） 所有输入VIH（最大）= 5.5V（VCC =0?5.5V） 5引脚DBV封装 5引脚DCK封装 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| AHC1G02HDCKR |
ABH |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
250 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G02DBVR |
A02 |
TEXAS |
05+ |
SOT-153/SOT23-5/SC-74A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G02DCKR |
AB |
TEXAS |
06+ |
SOT-353/SC70-5/SC-88A |
50 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G02DCKR |
AB |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G02HDCKR |
ABH |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
2000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| SN74AHC1G02HDCKR |
ABH |
TEXAS |
05+ |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
