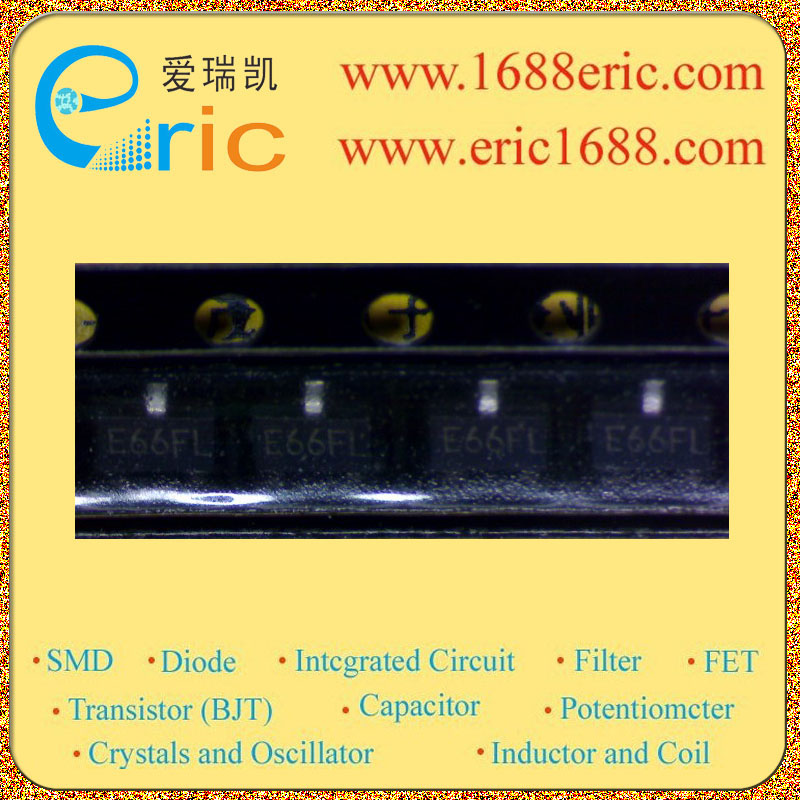

AP1702FWL E66 的参数 |
| 受检测电压数
Number of Voltages Monitored |
1 |
| 检测电压/复位阈值电压VDET
Voltage - Threshold |
2.63V |
| 工作电压VIN
Voltage - Supply |
-0.3~6V |
| 高/低有效复位
Reset |
高 Active High |
| 输出类型
Output Type |
push pull |
| 看门狗
Watchdog |
无 No |
| 功耗Pd
Power Dissipation |
320mW/0.32W |
| Description & Applications |
?3-Pin Microprocessor Reset Circuits ?Precision Monitoring of +3V, +3.3V, and +5V ?Power-Supply Voltages ?Fully Specified Over Temperature ?Available in Three Output Configurations ?Push-Pull RESET Low Output (AP1701/3) ?140ms min Power-On Reset Pulse Width ?12μA Supply Current ?Guaranteed Reset Valid to VCC = +1V ? Power Supply Transient Immunity ?No External Components ? 3-pin SOT23 package ?Computers ?Controllers ?Intelligent Instruments ?Critical μP and μC Power Monitoring ?Portable/Battery Powered Equipment ?Automotive |
| 描述与应用 |
?3针微处理器复位电路 ?精密监测+3 V，+3.3 V和+5 V ?电源电压 ?全面设定温度 ?提供三种输出配置 ?低推挽式复位输出（AP1701/3） ?最小140ms的电源上电复位脉冲宽度 ?电源电流12μA ?保证有效复位VCC=+1 V ?电源瞬态抗扰度 ?无需外部元件 ?3引脚SOT23封装 ?电脑 ?控制器 ?智能仪表 ?关键UP微控制器和电源监控 ?便携式/电池供电设备 ?汽车 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| AP1702AWL |
E06 |
DIODES |
06+NOPB |
SOT-23 |
400 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| AP1702AWLA |
E06BL |
DIODES |
06NOPB |
SOT-23 |
0 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| AP1702EW |
E56 |
ANACHIP |
06+NOPB |
SOT-23 |
3000 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| AP1702FWL |
E66 |
ANACHIP |
06+NOPB |
SOT-23 |
4500 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| AP1702DWL |
E46 |
DIODES |
06NOPB |
SOT-23 |
1900 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| AP1702AWLA |
E06BL |
DIODES |
06+ROHS |
SOT-23 |
3000 |
电源管理ICPower Management IC/PMIC |
查看 |
|
|
|
