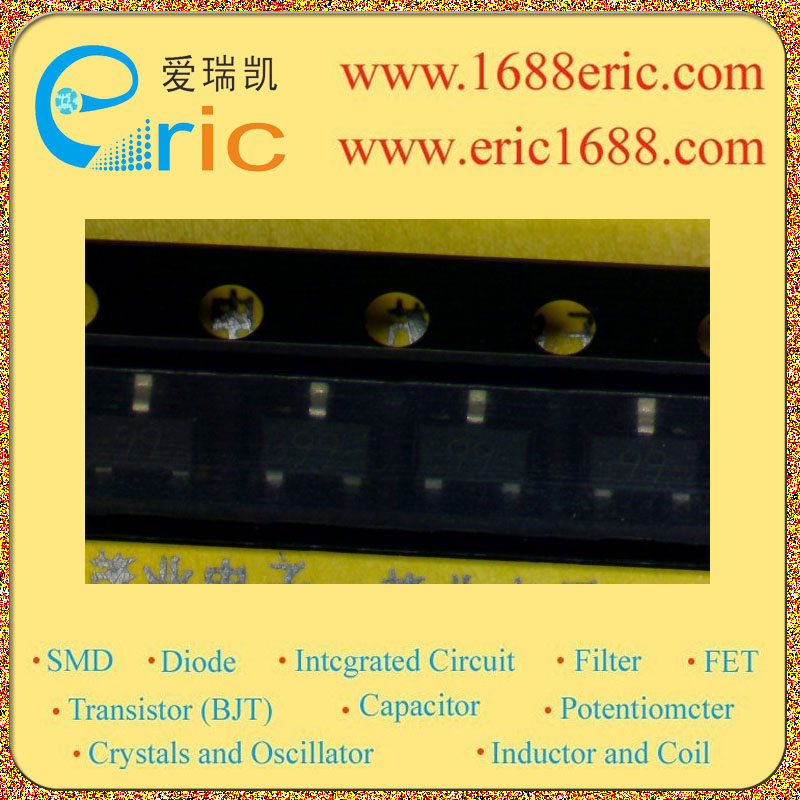

DN8799MSA 99 的参数 |
| 感应范围
Sensing Range |
-20/-3mT跳闸,0.2/mT释放 -20/-3mT Trip,0.2/mT Release |
| 类型
Type |
霍尔效应开关 Hall Effect Switch |
| 电源电压
Voltage - Supply |
18V |
| 电源电流
Current - Supply |
1.0-6.0mA |
| 输出电流
Current - Output (Max) |
|
| Description & Applications |
3 V operation Hall IC One-way magnetic field operation ■ Overview The DN8799MS is a 3 V operation Hall IC which includes a Hall element, amplifier circuit, Schmidt circuit, stabilized power supply and temperature compensation circuit which are integrated on a single chip with a fine patterning technology. The magnetic input signal is outputted by being converted to high or low. We have improved the conventional circuit to realize a stable operation covering from low to high supply voltage and from low to high temperature. Features ? Wide operating supply voltage range (VCC = 2.7 V to 14.4 V) ? Wide operating ambient temperature (?40°C to +85°C) ? Package: Mini type (3-pin type) (1.1 mm thick: Same as a standard transistor) |
| 描述与应用 |
宽工作电源电压范围 （VCC=2.7 V至14.4 V） ?宽工作环境温度（-40°C至+85°C） ?封装：迷你型（3针） （1.1毫米厚的：同一个标准晶体管） |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| DN8796MS-TXL |
96 |
Panasonic |
05+ |
SOT-23 |
0 |
集成电路ICIntegrated Circuit（IC）-霍尔ICHALL IC |
查看 |
| DN8797MS |
97 |
Panasonic |
05+ |
SOT-23 |
4000 |
集成电路ICIntegrated Circuit（IC）-霍尔ICHALL IC |
查看 |
| DN8798MS |
98 |
Panasonic |
04+ |
SOT-23 |
85 |
集成电路ICIntegrated Circuit（IC）-霍尔ICHALL IC |
查看 |
| DN8799MSA |
99 |
Panasonic |
05+ |
SOT-23 |
60920 |
集成电路ICIntegrated Circuit（IC）-霍尔ICHALL IC |
查看 |
| DN8799MSA |
99 |
Panasonic |
05+ |
SOT-23 |
0 |
集成电路ICIntegrated Circuit（IC）-霍尔ICHALL IC |
查看 |
|
|
|
