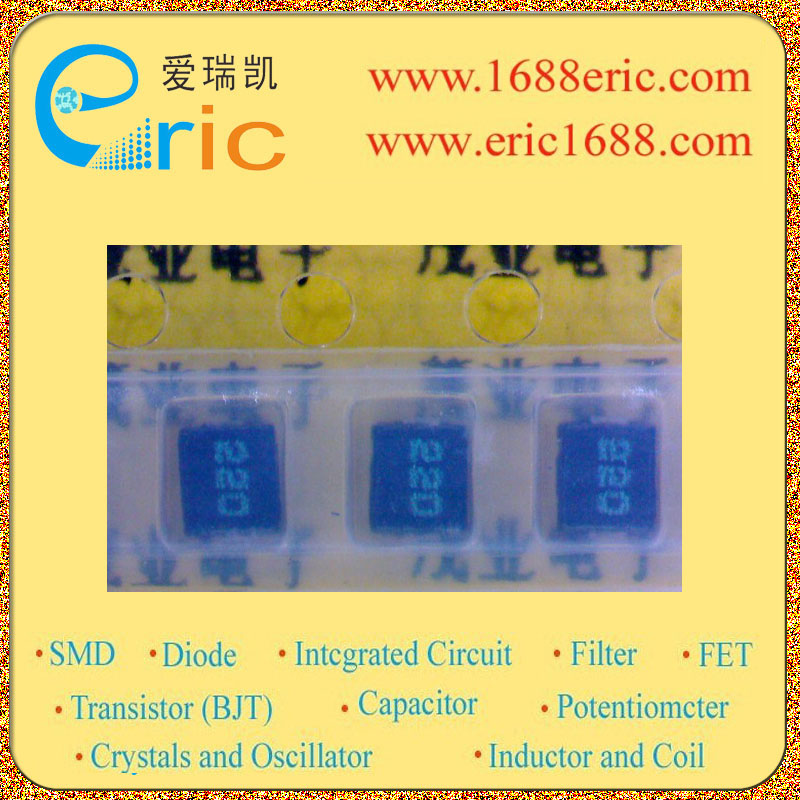

ELJFC220KF 220 的参数 |
| 电感值
Inductance |
22UH |
| 误差
Tolerance |
±10% |
| 额定电流
Current Rating |
60mA |
| 饱和电流
Current - Saturation |
|
| 不同频率时的Q值
Q @ Frequency |
25 @ 2.52MHz |
| 自振谐频率SRF
Frequency - Self Resonant |
22MHz |
| DC电阻DCR
DC Resistance (DCR) |
6Ω/Ohm |
| 屏蔽
Shielding |
无屏蔽 Unshielded |
| Description & Applications |
● General use wire wound and resin molded chip inductor. Features ● High Q ● Good for mounting ● Wide allowable range (1.0 nH to 1000 μH) ● Recommended Applications ● CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras |
| 描述与应用 |
●通用线绕和树脂模压片式电感器。 ?特点 ?●高Q值 ●适合安装 ●允许的范围宽（1.0 nH至1000μH） ●推荐应用 ●CTV，VTR，HIC，硬盘，软驱，无绳电话，便携式电话 寻呼机，视频摄像头 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| ELJFC220KF |
220 |
Panasonic |
05+ |
2520-220K |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R2MF |
2r2 |
Panasonic |
5 |
2520-2R2M |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R7KF |
2R7 |
Panasonic |
05+ |
2520-2R7K |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC220KF |
220 |
Panasonic |
05+ |
2520-220K |
5000 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R2MF |
0 |
Panasonic |
05+ |
2520-2R2M |
3000 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R2JF |
|
Panasonic |
05+ |
2520-2R2J |
2000 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R2KF |
|
Panasonic |
05+ |
2520-2R2K |
1200 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R7KF |
|
Panasonic |
05+ |
2520-2R7K |
5500 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC2R7MF |
|
Panasonic |
05+ |
2520-2R7M |
2000 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC220JF |
|
Panasonic |
05+NOPB1800 |
2520-220J |
3500 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| ELJFC270KF |
|
Panasonic |
05+ |
2520-270K |
1000 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
|
|
|
