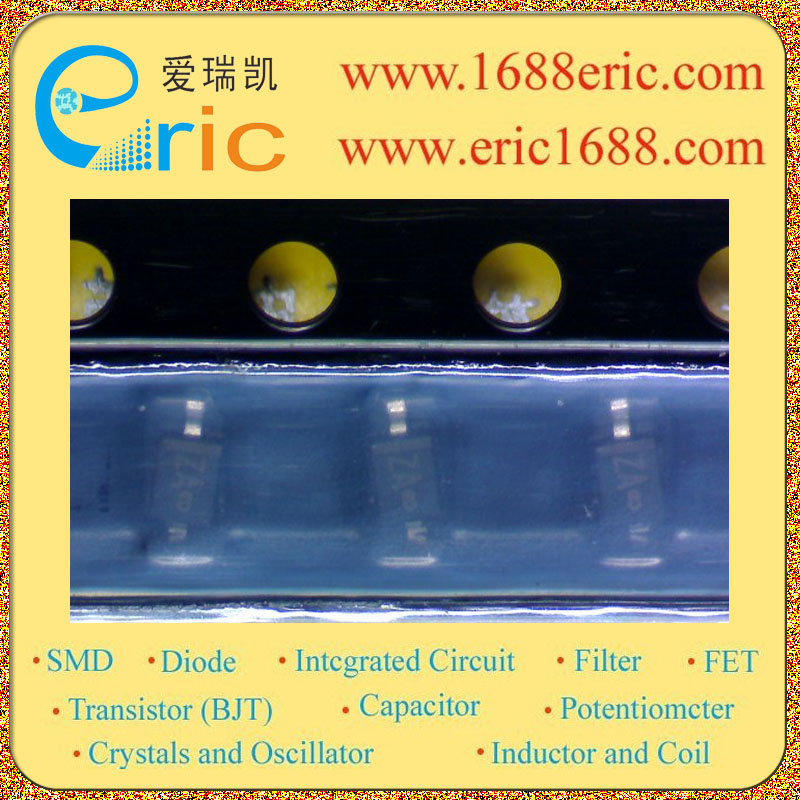

ENGSD05UT2 ZA 的参数 |
极性
Polarization |
单向 Unidirectional |
反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
反向击穿电压VBR
Breakdown Voltage |
6.8V |
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
300W |
峰值脉冲电流IPPm
Peak Forward Surge Current |
|
额定耗散功率Pd
Power dissipation |
0.2W/200mW |
Description & Applications |
Transient Voltage Suppressor Diode;Specification Features: ? Steady State Power Routing of 200 mW ? Peak Power ? 350 W (8 * 20 us) ? Low Leakage ? Cathode Indicated by Polarity Band ? Package Weight: 4.507 mg/wmt ? Meets IEC61000?4?2 Level 4, 15 kV (Air), 8 kV (Contact) ? Meets IEC6100?4?4 Level 4, 40 A ? Meets IEC6100?4?5 (Lightning), 24 A ? Meets 16 kV Human Body Model ESD Requirements ? Pb?Free Packages are Available |
描述与应用 |
瞬态电压 抑制二极管;规格特性: ?稳态功率为200兆瓦的路由 ?峰值电力 - 350瓦(8 *20us) ?低漏 ?负极指示的极性频带 ?包装重量:4.507毫克/ WMT ?符合IEC61000-4-2第4级,15 kV(空气),8 kV(联系) ?符合IEC6100-4-4第4级,40 A ?符合IEC6100-4-5(闪电),24 A ?符合16 kV人体模型ESD要求 ?无铅包可用 |
技术文档PDF下载 |
在线阅读 |
|
|
|
|
相关型号列表 |
型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
ENGBAT54CAS01 |
5C |
ON |
05+ |
SOT-23/SC-59 |
3000 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管串联1 Pair Series Connection |
查看 |
ENGMM3Z6V2TUT3-4 |
DE |
ON |
03+ |
SOD323/0805-6.2V |
12000 |
二极管Diodes-稳压二极管/齐纳二极管Zener Diodes-单管Single |
查看 |
ENGNP1300 |
130B |
ON |
07+ |
SMB/DO-214AA |
2000 |
可控硅/晶闸管Triac/Thyristor,SCR-浪涌吸收器Thyristor Surge Protection Devices |
查看 |
ENGNP2100SCUT001 |
210C |
ON |
07+ |
SMB/DO-214AA |
2500 |
可控硅/晶闸管Triac/Thyristor,SCR-浪涌吸收器Thyristor Surge Protection Devices |
查看 |
ENGNP3500SAUT001 |
351B |
ON |
07+ |
DO-214AA/SMB-350V |
0 |
二极管Diodes-瞬态抑制二极管(TVS)/(ESD)-单通道1 Channel |
查看 |
ENGNUP4004 |
P4J |
ON |
06+ |
SOT-153/SOT23-5 |
800 |
二极管Diodes-瞬态抑制二极管(TVS)/(ESD)-4 通道阵列4 Channel Array |
查看 |
ENGSD05UT2 |
ZA |
ON |
05+ |
SOD323/0805-5V |
0 |
二极管Diodes-瞬态抑制二极管(TVS)/(ESD)-单通道1 Channel |
查看 |
ENGSMF05UTG |
60 |
ON |
05+ |
SOT-353/SC-88A |
2500 |
二极管Diodes-瞬态抑制二极管(TVS)/(ESD)-4 通道阵列4 Channel Array |
查看 |
ENGNSR0320UT1 |
RD |
ON |
05+ |
SOD323/SC-76/USC/0805 |
2800 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single |
查看 |
ENGMM3Z6V2TUT3-4 |
DE |
ON |
03+ |
SOD323/0805-6.2V |
0 |
二极管Diodes-稳压二极管/齐纳二极管Zener Diodes-单管Single |
查看 |
ENGNP1500SCUT001 |
150C |
ON |
07+ |
SMB/DO-214AA |
1500 |
可控硅/晶闸管Triac/Thyristor,SCR-浪涌吸收器Thyristor Surge Protection Devices |
查看 |
ENGSD05UT2 |
ZA |
ON |
05+ |
SOD323/0805-5V |
3000 |
二极管Diodes |
查看 |
|
|
|
