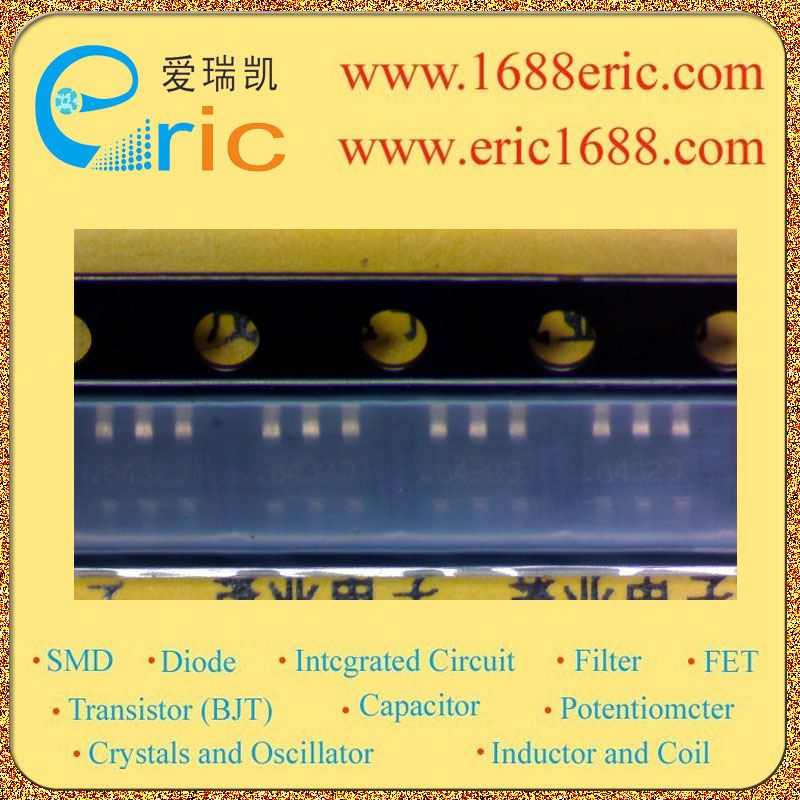

FDC6432SH 6432 的参数 |
最大源漏极电压Vds
Drain-Source Voltage |
30V/-12V |
最大栅源极电压Vgs(±)
Gate-Source Voltage |
16V/8V |
最大漏极电流Id
Drain Current |
2.4A/-2.5A |
源漏极导通电阻Rds
Drain-Source On-State Resistance |
105m?@ VGS = 4.5V, ID =2.2A/220m?@ VGS =-1.8V, ID =-1.6A |
开启电压Vgs(th)
Gate-Source Threshold Voltage |
1~3V/-0.4~-1.5V |
耗散功率Pd
Power Dissipation |
1.3W |
Description & Applications |
12V P-Channel Power Trench MOSFET, 30V Power Trench Sync FET General Description This complementary P-Channel MOSFET with Sync FET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for providing an extremely low RDS(ON) in a small package. Applications DC/DC converter Power management Features · Low gate charge · High performance trench technology for extremely low RDS(ON). · Super SOT –6 package |
描述与应用 |
12V P沟道功率沟槽MOSFET,30V功率沟道同步FET 概述 ???这种互补的P沟道MOSFET同步FET已专门设计,以提高整体效率的DC / DC转换器采用同步或传统开关PWM控制器。它已被优化在一个小型封装提供极低的RDS(ON)。 应用 DC/ DC转换器 电源管理 特点 ·低栅极电荷 ·高性能沟道技术极低的RDS(ON)。 ·超级SOT-6包装 |
