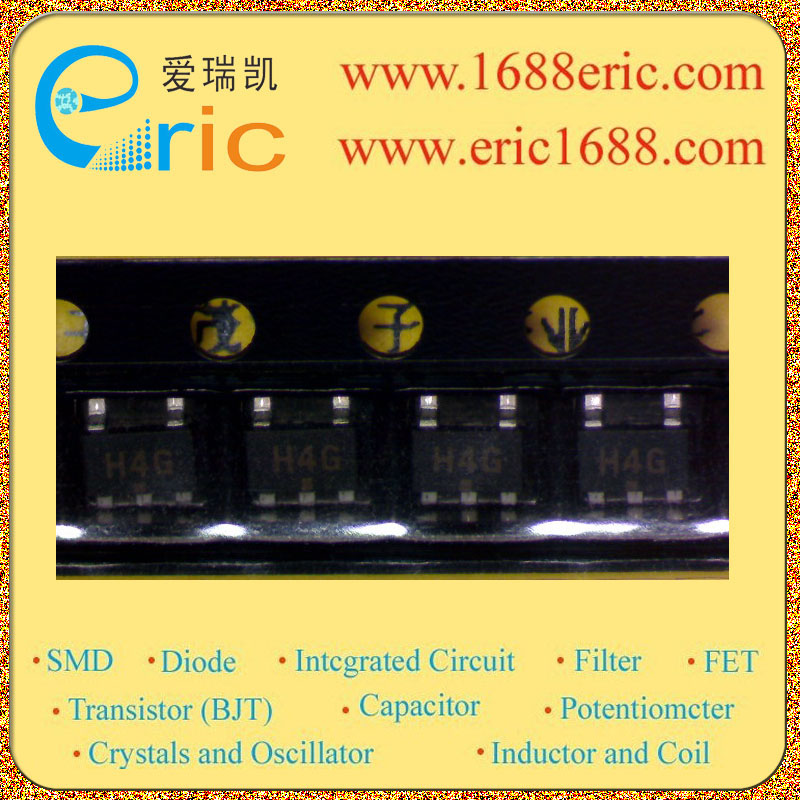

HD74UH32EL H4 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~6V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-2.6mA，2.6mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.8V |
| 高逻辑电平
Logic Level - High |
1.5V~4.2V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
12ns @ 4.5V，50pF |
| Description & Applications |
2-input OR Gate；Features Encapsulated in very small 5pins package of 2.9 ×1.6 ×1.1 mm, the efficiency to mount on substrate is significantly improved The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74HC32 Supply voltage range: 2 to 6 V Operating temperature range: –40 to +85°C | IOH | = IOL = 2 mA (min) |
| 描述与应用 |
2输入或门;特性 封装在非常小的5PINS包装2.9×1.6×1.1毫米，安装在基板效率显著提高 基本门功能一字排开瑞萨单向逻辑系列 提供压纹高速自动安装盘带 电气特性相当于HD74HC32 电源电压范围：2到6 V 工作温度范围：-40至+85°C | IOH= IOL=2 mA（最小） |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| HD74UH00EL |
H1A |
RENESAS |
05+ |
SOT-153/MPAK-5V |
2800 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH02EL |
H3 |
HITACHI |
04+ |
SOT-153/MPAK-5V |
3100 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH04EL |
H5 |
HITACHI |
05+ |
SOT-153/MPAK-5V |
5200 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH08EL |
H2 |
HITACHI |
05+ |
SOT-153/MPAK-5V |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH08EL |
H2 |
HITACHI |
05+ |
SOT-153/MPAK-5V |
1800 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH08EL |
H2K |
HITACHI |
02+ |
SOT-153/MPAK-5V |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH32EL |
H4 |
RENESAS |
05+ |
SOT-153/MPAK-5V |
75 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| HD74UH4066EL |
H9 |
HITACHI |
05+ |
SOT-153/SOT23-5 |
9550 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
|
|
|
