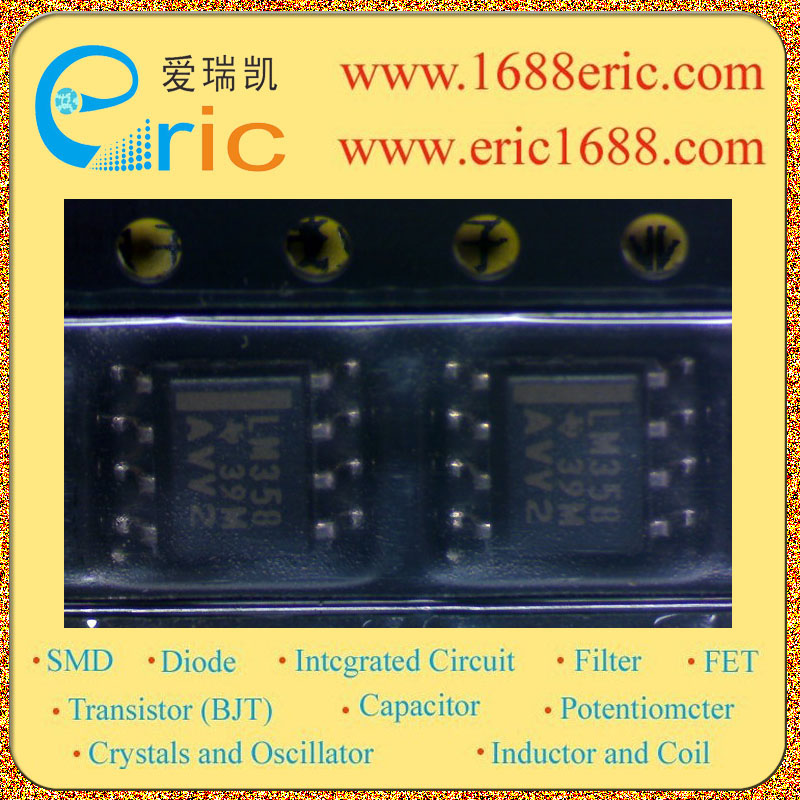

LM358 LM358 的参数 |
| 电路数
Number of Circuits |
2 |
| 转换速率
Slew Rate |
0.3V/μs |
| 增益带宽积
Gain Bandwidth Product |
1MHz |
| 共模抑制比
Common Mode Rejection Ratio |
85dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
45nA |
| 输入失调电压
Voltage - Input Offset |
9mV |
| 电源电流
Current - Supply |
1mA |
| 电流 - 输出/通道
Current - Output / Channel |
40mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
3V~32V,±1.5V~16V |
| Description & Applications |
Low Power Dual Operational Amplifiers; Two internally compensated op amps Compatible with all forms of logic |
| 描述与应用 |
低功率双运算放大器;两个内部补偿放大器 兼容所有形式的逻辑 |
