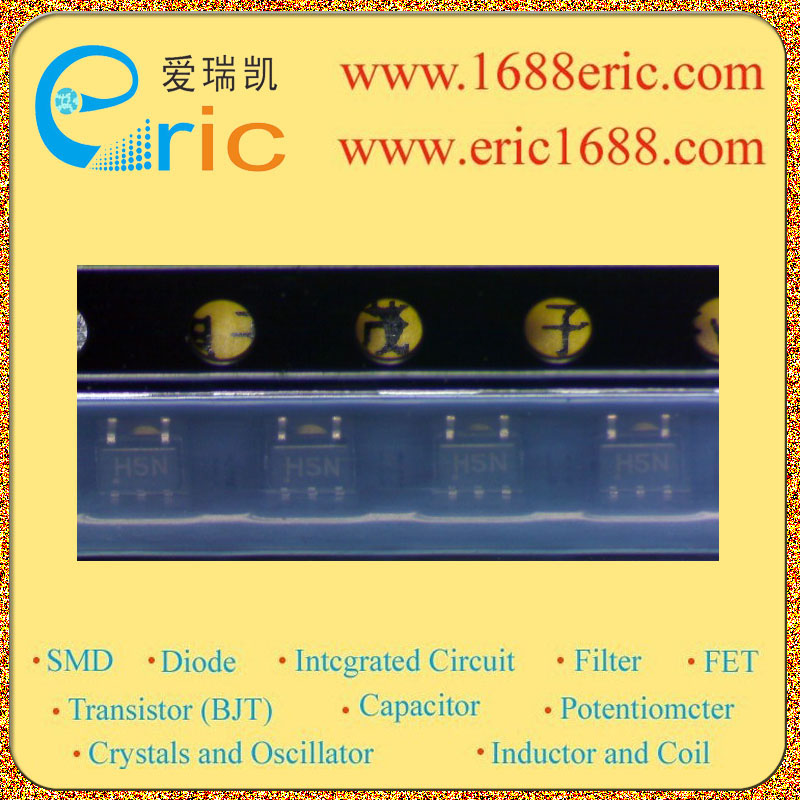

MC74HC1G04DFT2 H5N 的参数 |
| 逻辑类型
Logic Type |
反相器 Inverter |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
2V~6V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-2.6mA，2.6mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.8V |
| 高逻辑电平
Logic Level - High |
1.5V~4.2V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7ns @ 4.5V，50pF |
| Description & Applications |
Single inverter；Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) at TA = 25°C High Noise Immunity Balanced Propagation Delays (tpLH = tpHL) Symmetrical Output Impedance (IOH = IOL = 2 mA) Chip Complexity: FET = 105 Pb?Free Packages are available? |
| 描述与应用 |
单逆变器；特性 高速：TPD =7纳秒（典型值）@ VCC = 5 V 低功耗：ICC=1 UA TA= 25°C（最大值） 高抗噪声能力 平衡传输延迟（TPLH TPHL） 对称的输出阻抗（IOH= IOL= 2毫安） 芯片的复杂性：FET=105 提供无铅封装 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MC74HC1G00DFT2 |
H1V |
ON |
05+ |
SOT-353/SC-88A/SC70-5 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74HC1G02DFT2 |
H3 |
ON |
05+ |
SOT-353/SC-88A/SC70-5 |
470 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74HC1G04DFT1 |
H5 |
ON |
05+ |
SOT-353/SC-88A/SC70-5 |
7766 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74HC1G04DFT2 |
H5N |
ON |
04+ |
SOT-353/SC-88A/SC70-5 |
1940 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74HC1G08DFT1 |
H22 |
ON |
05+ |
SOT-353/SC-88A/SC70-5 |
2191 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74HC1G08DFT2G |
H2P |
ON |
05+NOPB |
SOT-353/SOT23-5/TSOP5/SC59 |
294 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
