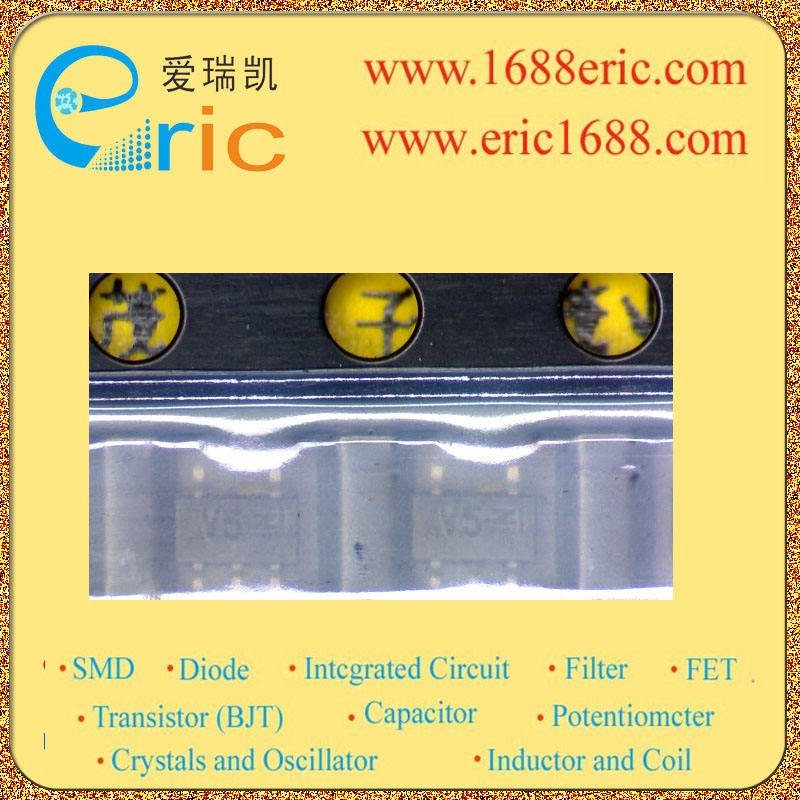

MC74VHC1G04DFT1 V5 的参数 |
| 逻辑类型
Logic Type |
反相器 Inverter |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
2V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.65V |
| 高逻辑电平
Logic Level - High |
1.5V~3.85V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7.5ns @ 4.5V~5.5V，50pF |
| Description & Applications |
Single inverter；Features High Speed: tPD = 3ns (Typ) @ VCC = 5V Low Internal Power Dissipation: ICC = 2μA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced propagation delays Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300mA ESD Performance: HBM > 1500V; MM > 200V |
| 描述与应用 |
单逆变器；特性 高速：TPD =3NS（典型值）@ VCC= 5V 内部功耗：ICC=2μA（最大值）@ TA= 25°C 掉电保护的输入端 平衡传输时延 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300mA ESD性能：>1500V HBM MM> 200V |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MC74VHC1G04DF |
V5 |
ON |
05+1rnopb |
SOT-353/SC-88A/SC70-5 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74VHC1G04DFT1 |
V5 |
ON |
05+ |
SOT-353/SC-88A/SC70-5 |
3200 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74VHC1G04DFT2 |
V5 |
ON |
05+ROHS3KM |
SOT-353/SC-88A/SC70-5 |
4800 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74VHC1G04DTT1 |
VS2 |
ON |
05+ |
SOT-153/SOT23-5/TSOP5/SC59 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| MC74VHC1G04DTT1G |
VS2 |
ON |
07+NOPB |
SOT-153/SOT23-5/TSOP5/SC59 |
40 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
