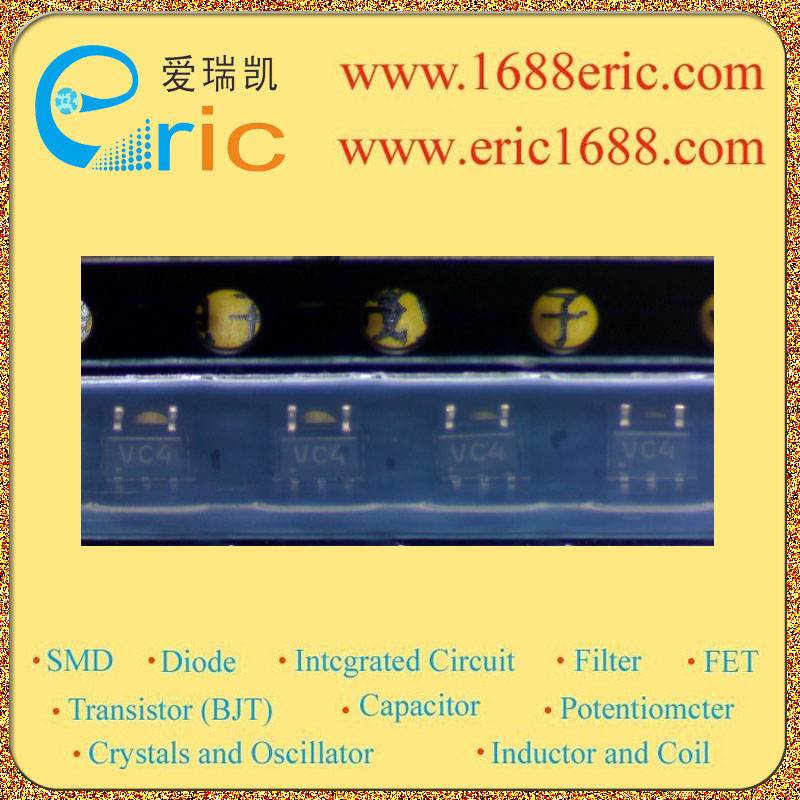

MC74VHC1GT14DFT2 VC4 的参数 |
| 逻辑类型
Logic Type |
反相施密特触发器 Inverting Schmitt trigger |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
3V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.1V~0.36V |
| 高逻辑电平
Logic Level - High |
1.9V~3.94V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
5.8ns @ 4.5V~5.5V，50pF |
| Description & Applications |
Schmitt-Trigger Inverter / CMOS Logic Level Shifter ；Features High Speed: tPD = 4.5ns (Typ) @VCC = 5.0 V Low Power Dissipation: ICC = 1 uA (Max) @TA = 25°C TTL?Compatible Inputs: VIL = 0.8 V; VIH = 2.0 V CMOS?Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @ Load Power Down Protection Provided on Inputs and Outputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 100; Equivalent Gates = 25 Pb?Free Package is Available |
| 描述与应用 |
施密特触发器逆变器/ CMOS逻辑电平转换器;特性 高速：TPD =延迟时间为4.5ns（典型值）@ VCC=5.0 V 低功耗：ICC=1uA（最大值）@ TA= 25°C TTL兼容的输入：VIL=0.8 V; VIH=2.0 V CMOS兼容输出：VOH> 0.8 VCC VOL<0.1 VCC@负载 掉电保护提供输入和输出 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片复杂度：场效应管=100;等效门= 25 无铅包装可用 |
