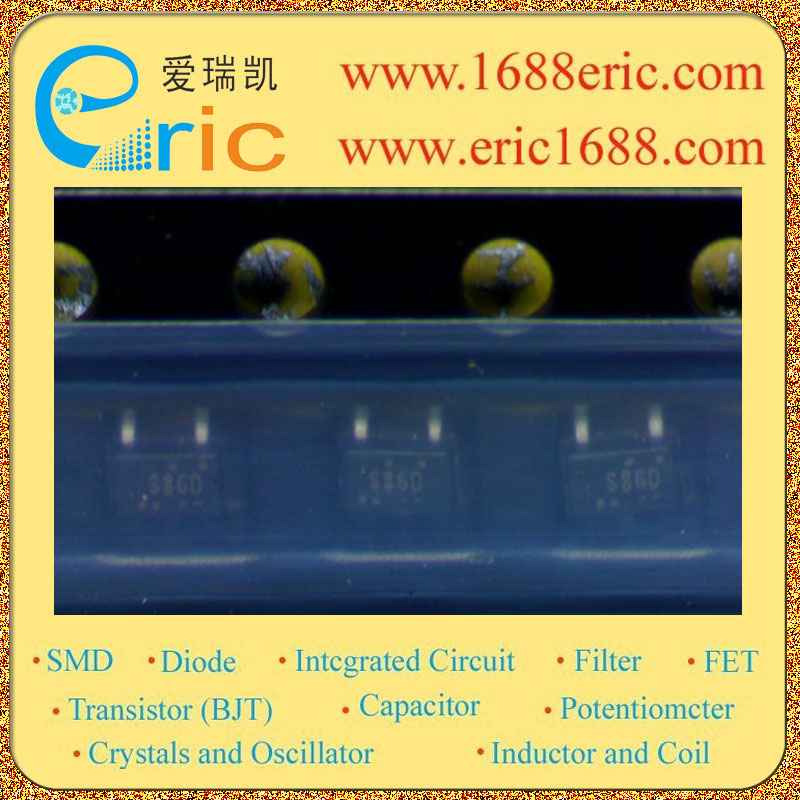

NC7S86P5X S86 的参数 |
| 逻辑类型
Logic Type |
异或门 XOR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~6V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-2.6mA，2.6mA |
| 低逻辑电平
Logic Level - Low |
0.5V |
| 高逻辑电平
Logic Level - High |
1.5V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7ns @ 6V，50pF |
| Description & Applications |
2-Input Exclusive-OR Gate ；Features Tiny Logic HS 2-Input Exclusive-OR Gate Space saving SOT23 or SC70 5-lead package Ultra small MicroPak? leadless package High Speed; tPD 4.5 ns typ Low Quiescent Power; ICC < 1 μA Balanced Output Drive; 2 mA IOL, ?2 mA IOH Broad VCC Operating Range; 2V–6V Balanced Propagation Delays Specified for 3V operation |
| 描述与应用 |
2输入异或门;特性 微型逻辑HS2输入异或门 节省空间的SOT23或SC705引线封装 超小型的MicroPak?无铅封装 高速; TPD4.5 ns（典型值） 静态功耗低; ICC<1μA 平衡输出驱动;毫安毫安IOH IOL，-2 VCC工作电压范围宽;2V-6V 平衡传输延时 3V工作电压规定 |
