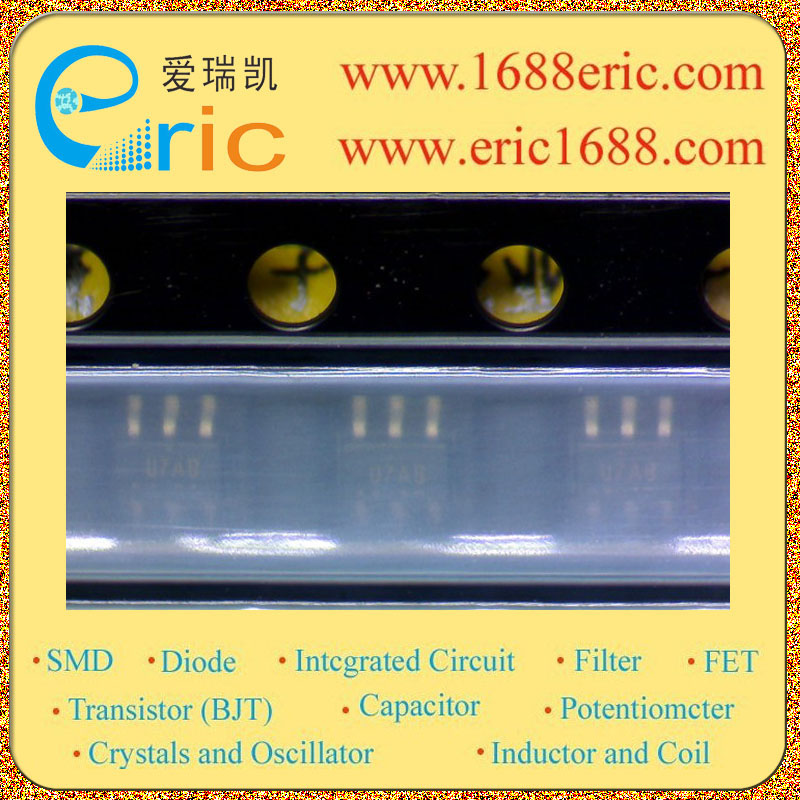

nc7sbu3157p6x u7ab 的参数 |
| 开关配置
Circuit |
单刀双掷 1*SPDT |
| 导通电阻
On-State Resistance |
15Ω/Ohm |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| Description & Applications |
Low Voltage UHS SPDT Analog Switch with ?2V Undershoot Protection Useful in both analog and digital applications Space saving SC70 6-lead surface mount package Low On Resistance: < 10? Rail-to-Rail signal handling Power down high impedance control input Overvoltage tolerance of control input to 7.0V |
| 描述与应用 |
低电压UHS-2V下冲保护的单刀双掷模拟开关 在模拟和数字应用非常有用 SC70 6引脚表面贴装封装节省空间 低导通电阻：<10Ω上 轨到轨信号处理 高阻抗控制输入掉电 控制输入??到7.0V的过电压耐受性 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NC7SB3157L6X |
|
FAIRCHILD |
05NOPB |
MAC06A |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-多路复用器/多路分解器Multiplexer/Demultiplexer |
查看 |
| NC7SB3157P6X |
B7A |
FAIRCHILD |
04+ |
SOT-363/MAA06A |
3000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-多路复用器/多路分解器Multiplexer/Demultiplexer |
查看 |
| NC7SB3157P6X |
B7A |
FAIRCHILD |
05+ |
SOT-363/MAA06A |
3100 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-多路复用器/多路分解器Multiplexer/Demultiplexer |
查看 |
| NC7SB3257P6X |
B7 |
FAIRCHILD |
04+ |
SOT-363/SC70-6/TSSOP6 |
3750 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| nc7sbu3157p6x |
u7ab |
FAIRCHILD |
04+ |
SOT-363/SC70-6 |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| NC7SBU3157P6X |
U7A |
FAIRCHILD |
04+ |
SOT-363/SC70-6 |
12000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| NC7SB3157L6X |
BB |
FAIRCHILD |
08+NOPB |
MAC06A |
9000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-多路复用器/多路分解器Multiplexer/Demultiplexer |
查看 |
|
|
|
