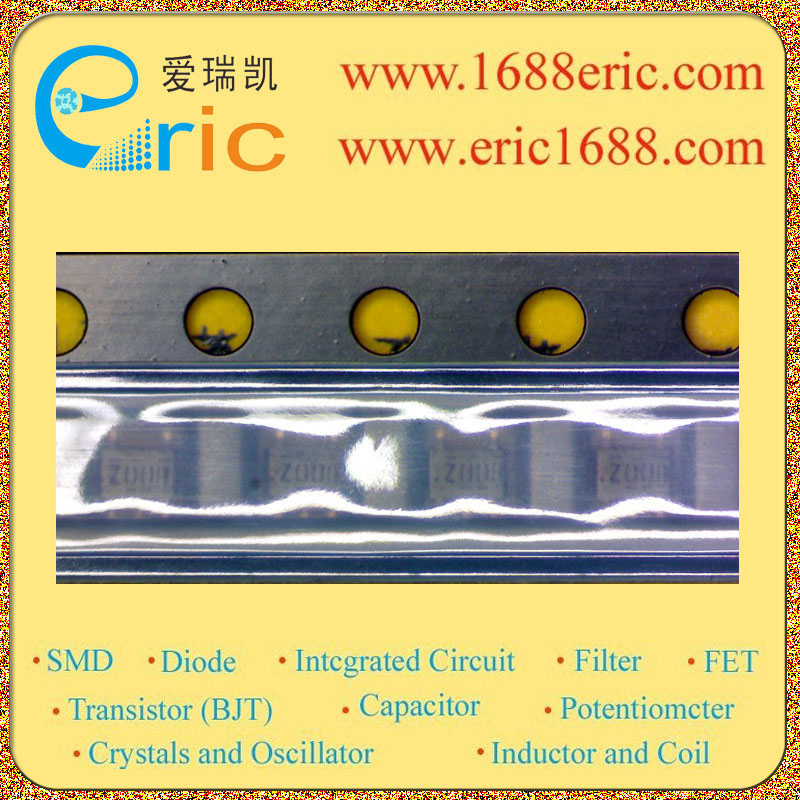

NC7SZ00P5X Z00 的参数 |
| 逻辑类型
Logic Type |
与非门 NAND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
2uA |
| 输出高，低电平电流
Current - Output High, Low |
-32mA，32mA |
| 低逻辑电平
Logic Level - Low |
0.1V~0.55V |
| 高逻辑电平
Logic Level - High |
1.55V~3.8V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
4.3ns @ 5V，50pF |
| Description & Applications |
Features TinyLogic? UHS 2-Input NAND Gate Space saving SOT23 or SC70 5-lead package Ultra small MicroPak? leadless package Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC High Output Drive; ±24 mA at 3V VCC Broad VCC Operating Range; 1.65V–5.5V Matches the performance of LCX when operated @3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 |
特性 TinyLogic?UHS2输入与非门 节省空间的SOT23或SC705引线封装 超小型的MicroPak?无铅封装 超高速; TPD2.4 ns（典型值）为50 pF的5V VCC 高输出驱动±24 mA在3V VCC 宽VCC工作电压范围1.65V-5.5V 时的性能相匹配的LCX 运行@3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NC7SZ00L6X |
YY |
FAIRCHILD |
05+NOPB |
6-UFDFN/TSOP6 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SZ00M5X |
7Z00B |
FAIRCHILD |
05+ |
SOT-153/SC-74A/SOT23-5 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SZ00M5X |
7Z00 |
FAIRCHILD |
05+ |
SOT-153/SC-74A/SOT23-5 |
2700 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SZ00P5X |
|
FAIRCHILD |
05+ |
SOT-353/SC70-5/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SZ00P5X |
Z00 |
FAIRCHILD |
05+nopb1200 |
SOT-353/SC70-5/SC-88A |
4200 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
