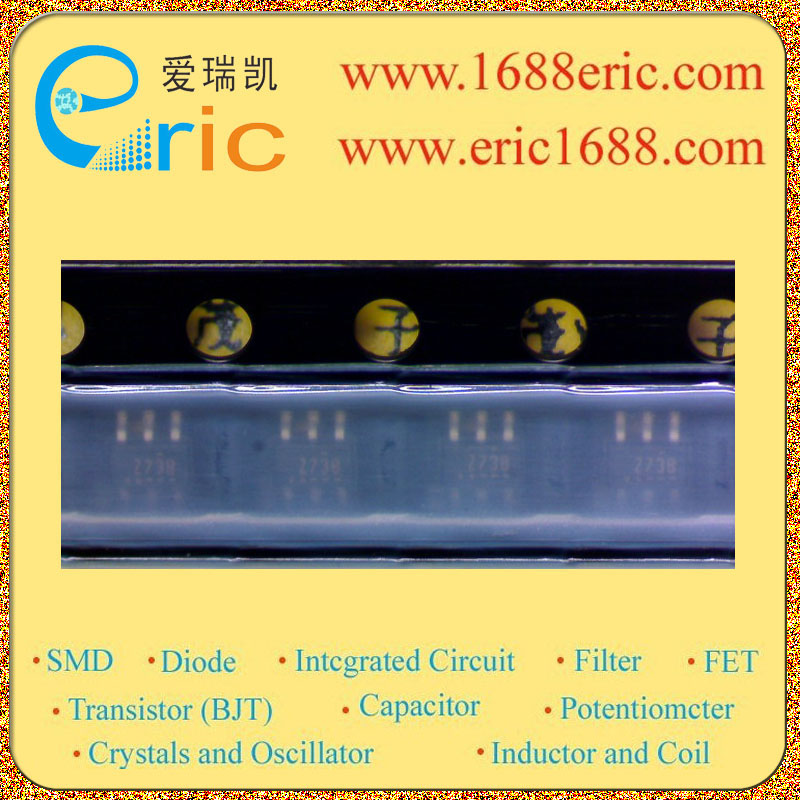

NC7SZ373P6X Z73 的参数 |
| 逻辑类型
Logic Type |
D 型透明锁存器 D-Type Transparent Latch |
| 电路
Circuit |
1:01 |
| 输出类型
Output Type |
三态 Tri-State |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| 独立电路
Independent Circuits |
1 |
| 传播延迟时间
Delay Time - Propagation |
2.6ns |
| 输出高，低电流
Current - Output High, Low |
32mA，32mA |
| Description & Applications |
TinyLogic? UHS D-Type Latch with 3-STATE Output General Description The NC7SZ373 is a single positive edge-triggered D-type CMOS Latch with 3-STATE output from Fairchild’s Ultra High Speed Series of TinyLogic? in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. The latch appears transparent to the datawhen Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. The output tolerates voltages above VCC in the 3-STATE condition. Features Space saving SC70 6-lead package Ultra small MicroPak? leadless package Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC High Output Drive; ±24 mA at 3V VCC Broad VCC Operating Range; 1.65V to 5.5V Matches the performance of LCX when operated at 3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 |
TinyLogic?UHS具有三态输出的D型锁存 概述 NC7SZ373是一个正边沿触发的D型 带3态输出从飞兆半导体的Ultra CMOS锁存 高速系列TinyLogic?节省空间 SC70 6引脚封装。该设备是捏造的 先进的CMOS技术，实现了超高速 高输出驱动，同时保持较低的静态功耗 耗散在一个非常宽VCC工作范围。该 设备被指定为工作在1.65V至5.5V的范围内。 输入和输出是高阻抗，当VCC为0V。 容忍的输入电压高达7V VCC工作电压无关。该锁存的数据显示为透明 当锁存使能（LE）为高。当LE低， 被锁存的数据，以满足设定时间。输出容忍上述VCC电压在3态条件。 节省空间的SC70 6引脚封装 超小型的MicroPak?无铅封装 超高速; TPD2.6 ns（典型值）为50 pF的5V VCC 高输出驱动±24 mA在3V VCC 宽VCC工作电压范围1.65V到5.5V 操作时的性能相匹配的LCX 3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V翻译 专利的噪声/ EMI抑制电路实施 |
