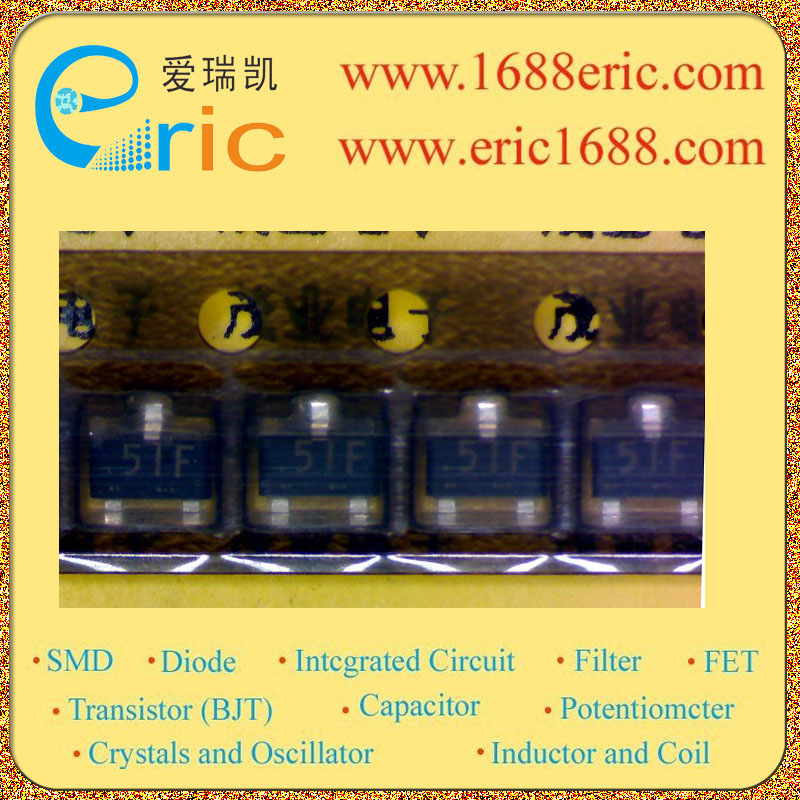

NNCD5.1F 51F 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
| 反向击穿电压VBR
Breakdown Voltage |
5.1V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
100W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.2W/200mW |
| Description & Applications |
Features ? E.S.D NOISE CLIPPING DIODES ? ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES (DOUBLE TYPE, ANODE COMMON) 3PIN MINI MOLD ? assures the minimum endurance of 30 kV. ? achieves a series over a wide range ? External interface circuit E.S.D protection. ? Circuits for Waveform clipper, Surge absorber. |
| 描述与应用 |
特点 ?E.S.D噪音限幅二极管 ?静电放电噪声削波二极管（double类型，共阳极）3PIN MINI模具 ?保证30千伏最小耐力。 ?产品达到一系列在很宽的范围内 ?外部接口电路E.S.D保护。 ?波形剪，浪涌吸收电路。 |
