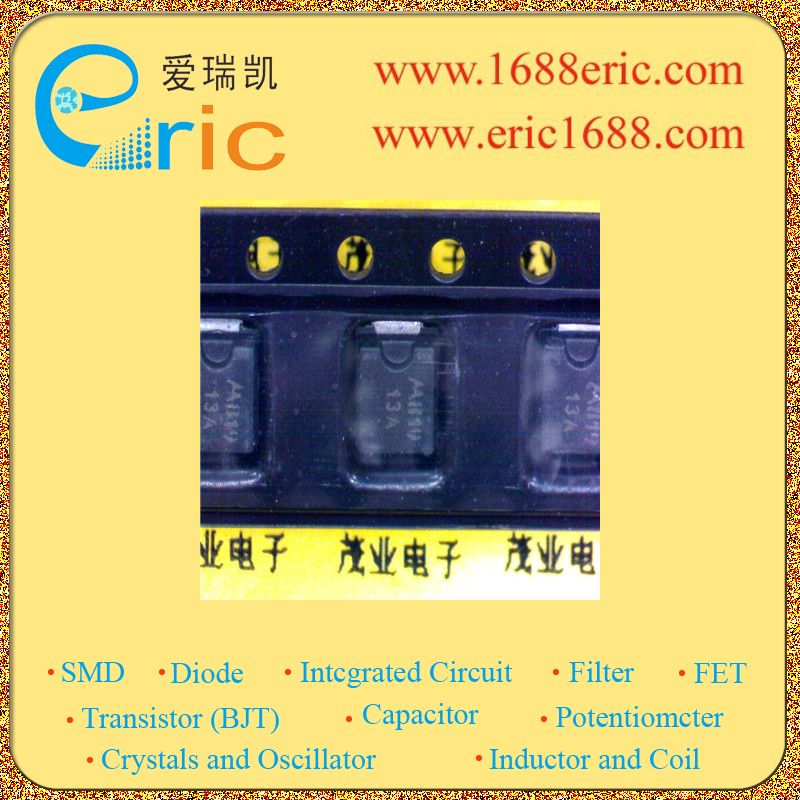

P6SMB13A 13A 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
11.1V |
| 反向击穿电压VBR
Breakdown Voltage |
13V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
33A |
| 额定耗散功率Pd
Power dissipation |
3W |
| Description & Applications |
Specification Features ? 600 Watt Peak Power Zener Transient Voltage Suppressors ? Working Peak Reverse Voltage Range ? 5.8 to 171 V ? Standard Zener Breakdown Voltage Range ? 6.8 to 200 V ? Peak Power ? 600 W @ 1 ms ? ESD Rating of Class 3 (>16 KV) per Human Body Model ? Maximum Clamp Voltage @ Peak Pulse Current ? Low Leakage < 5 uA Above 10 V ? UL 497B for Isolated Loop Circuit Protection ? Response Time is Typically < 1 ns ? Pb?Free Packages are Available |
| 描述与应用 |
规格特性 ?600瓦峰值功率齐纳二极管瞬态电压抑制器 ?工作峰值反向电压范围 - 5.8到171 V ?标准齐纳击穿电压范围 - 6.8到200 V ?峰值电力 - 600瓦@ 1毫秒 ?3级（>16 KV）每人体模型ESD额定值 ?最大钳位电压峰值脉冲电流 ?低漏<5 UA大于10 V ?UL497B用于隔离回路的电路保护 ?响应时间通常小于1 ns ?无铅包可用 |
