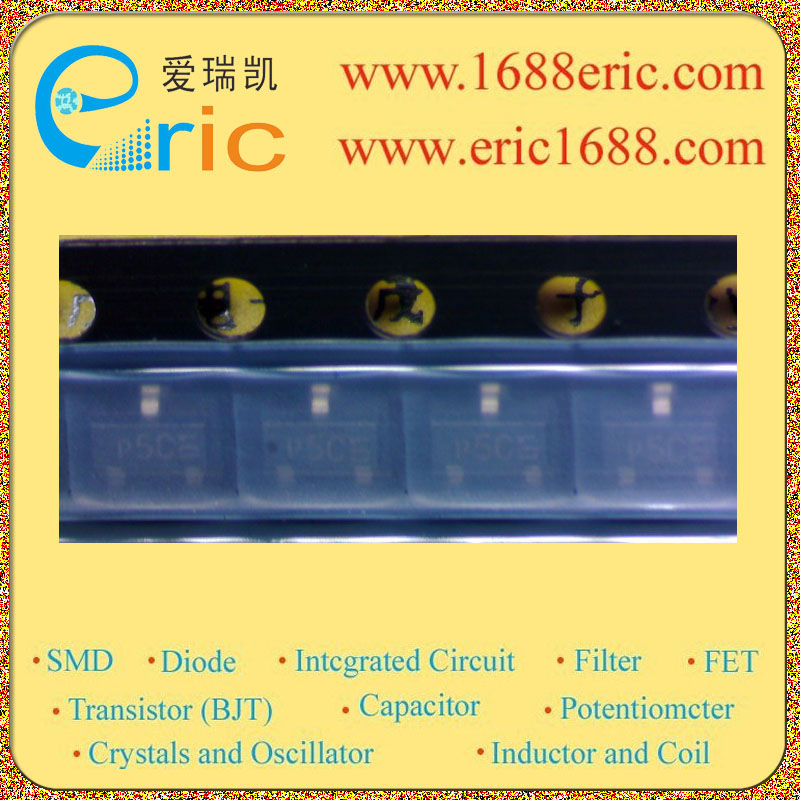

PMBD7000 5c 的参数 |
| 反向电压Vr
Reverse Voltage |
100V |
| 平均整流电流Io
Average Rectified Current |
125mA/0.125A |
| 最大正向压降VF
Forward Voltage(Vf) |
1.1V |
| 反向恢复时间Trr
Reverse Recovery Time |
4.0ns |
| 最大耗散功率Pd
Power Dissipation |
250mW/0.25W |
| Description & Applications |
?Double high-speed switching diode ?High switching speed: trr ≤ 4 ns ?ReVerse VoltAge: VR ≤ 100 V ?RepetitiVe peAk forwArd current: IFRm ≤ 450 mA ?RepetitiVe peAk reVerse VoltAge: VRRm ≤ 100 V ?SmAll SmD plAstic pAckAge ?AEC-Q101 quAlified |
| 描述与应用 |
?双高速开关二极管 ?高开关速度：TRR≤4 NS ?反向电压VR≤100 V ?重复峰值正向电流：IFRm≤450马 ?反向重复峰值电压VRRm≤100 V ?小SmD塑料包装 ?通过AEC-Q101资格 |
