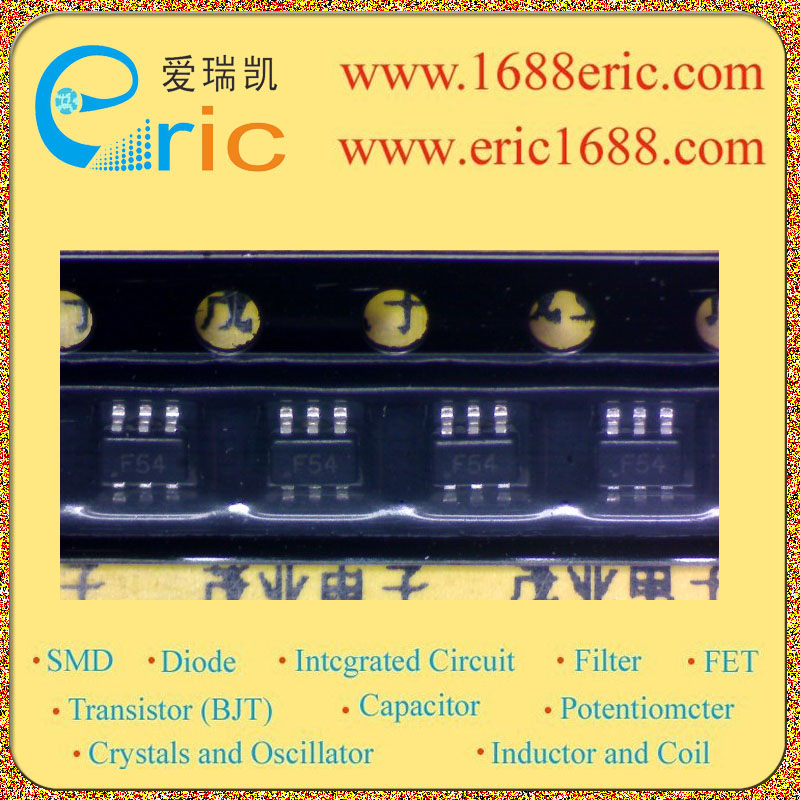

RCLAMP0504F.TCT F54 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
150W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
6A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
FEATURES ?Low Capacitance TVS Array ?Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) ?Array of surge rated diodes with internal TVS Diode ?Small package (2.4 x 2.2mm) saves board space ?Protects up to four I/O lines & power line ?Low capacitance (<3pF) for high-speed interfaces ?No insertion loss to ?Low leakage current and clamping voltage ?Low operating voltage: 5.0V ?Solid-state silicon-avalanche technology |
| 描述与应用 |
特性 ?低电容TVS阵列 ?瞬态保护高速数据线 IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） ?额定浪涌阵列内部TVS二极管二极管 ?小包装（2.4×2.2毫米）节省电路板空间 ?保护四个I / O线和电源线 ?高速接口低电容（<3PF） ?没有插入损耗 ?低漏电流和钳位电压 ?低工作电压：5.0V ?固态硅雪崩科技 |
