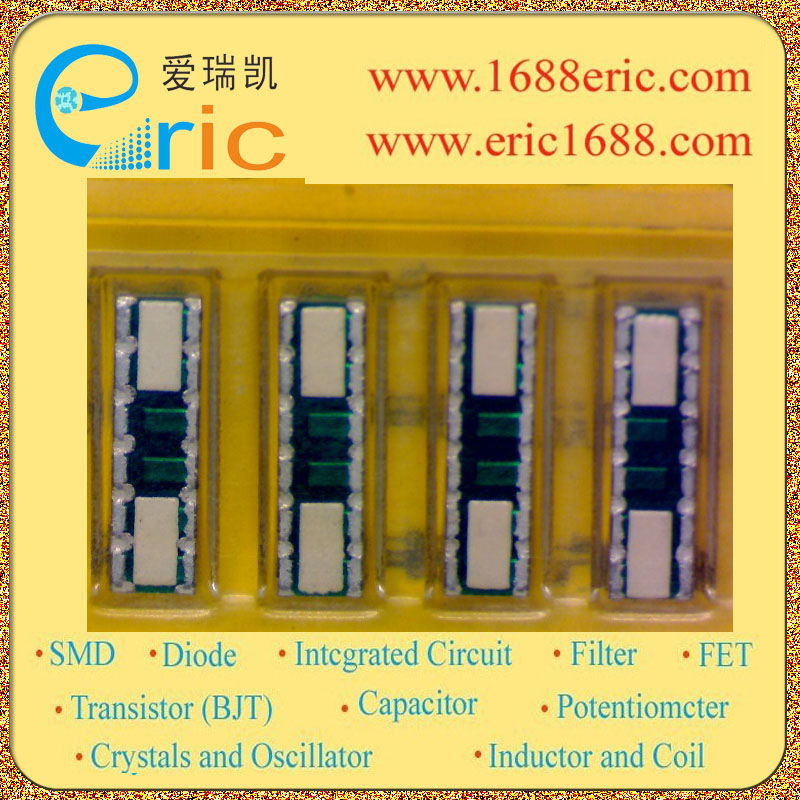

RL7520WT-R003-J 的参数 |
| 电阻值
Resistance |
0.003Ω/Ohm |
| 误差
Tolerance |
±5% |
| 电阻器数
Number of Resistors |
6 |
| 引脚数
Number of Pins |
12 |
| 功耗
Power Dissipation
|
1W |
| Description & Applications |
RL series, low resistance value chip resistors with long-side electrodes for high-precision current detection. A specially designed construction assures small dimensions and repressed surface temperature increase due to heat radiation and thermal conduction. This construction also minimizes the thermal effects on peripheral areas. Patent 2963671 Our SMD components contribute to lead-free composition of electronics products. |
| 描述与应用 |
RL系列，低电阻值芯片与长边电极进行高精度的电流检测电阻器。 专门设计的结构，保证小尺寸和压抑的表面温度升高，由于热辐射和热传导。这种结构也最大限度地减少对周边地区产生的热效应。专利2963671 我们的贴片元件电子产品无铅组成。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| RL7520T-R010-F |
R010 |
CYNTEC |
05+ |
6(0805)-0.010R |
11700 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| RL7520T-R012-G |
R012 |
CYNTEC |
05+ |
6(0805)-0.012R |
3590 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| RL7520T-R050-G |
R050 |
CYNTEC |
05+ |
6（0805）-03.05R |
3500 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| RL7520WT-R003-J |
|
CYNTEC |
05+ |
6(0805)-3MR |
3000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| RL7540T-R005-F |
R005 |
CYNTEC |
05+ |
6(1206)-0.005R |
17985 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
|
|
|
