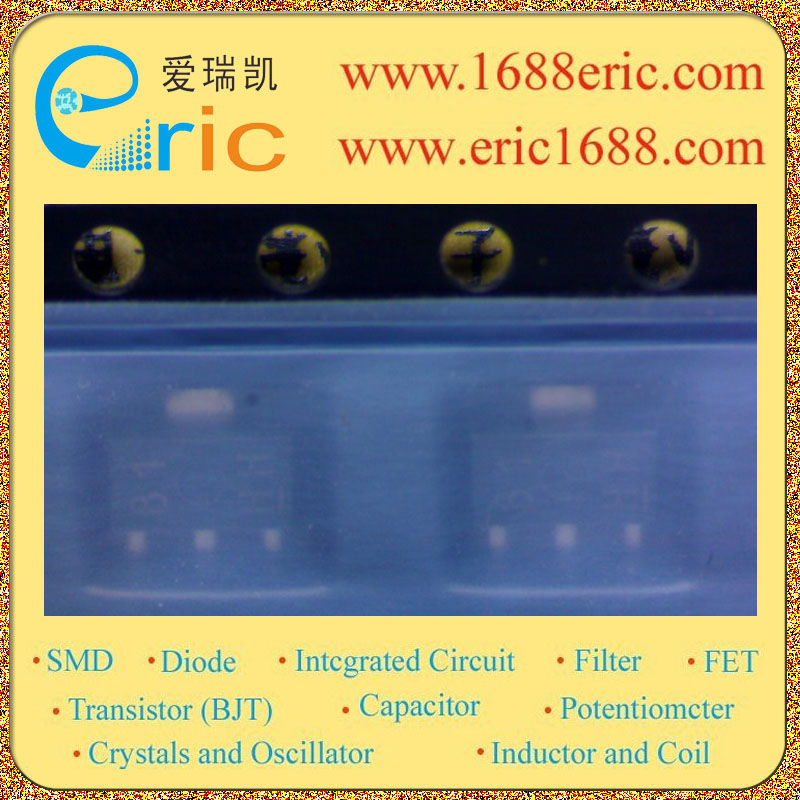

RT9169-12CX B1 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
7V |
| 输出电压VOUT
Voltage - Output |
1.2V |
| 输出电流Io
Current - Output |
100mA/0.1A |
| 最大压降VDO
Voltage - Dropout |
450mV/0.45V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
600mW/0.6W |
| Description & Applications |
100mA, 4μA Quiescent Current CMOS LDO Regulator ;?Ultra-Low Quiescent Current: 4 A ? Low Dropout: 450mV at 100mA ? Wide Operating Voltage Ranges: 2V~6V ?Current Limiting Protection ? Only 1 F Output Capacitor Required for Stability ? High Power Supply Rejection Ratio ? Battery-Powered Equipment ? Palmtops, Notebook Computers ? Hand-held Instruments ? PCMCIA Cards |
| 描述与应用 |
4μA100MA CMOS LDO静态电流稳压器;?超低静态电流：4 A ?低压差：在100mA时为450mV ?宽工作电压范围：2V?6V ?电流限制保护 ?只有1 F输出电容器的稳定性要求 ?高电源抑制比 ?电池供电设备 ?掌上电脑，笔记本电脑 ?手持式仪器 ?PCMCIA卡 |
