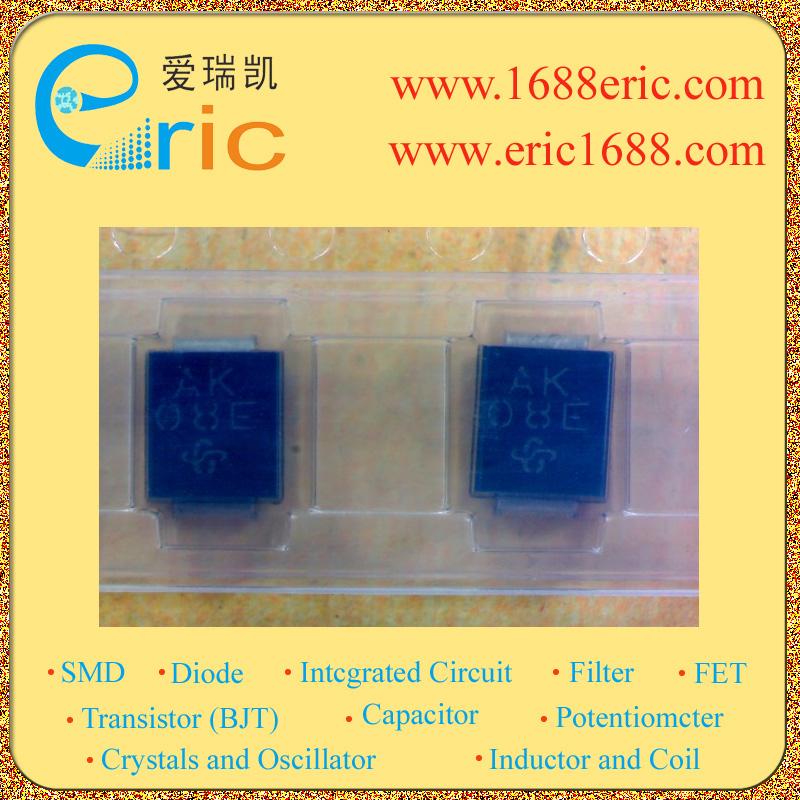

SMBJ6.5CA AK 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
6.5V |
| 反向击穿电压VBR
Breakdown Voltage |
7.6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
53.6A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ?SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR ?Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ?For surface mounted applications in order to optimize board space ?Low profile package ?Built-in strain relief ?Glass passivated junction ?Low incremental surge resistance ?600W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01% ?Excellent clamping capability ?Fast response time: typically less than 1.0ps from 0 volts to V(BR) for unidirectional and 5.0ns for bidirectional types ?For devices with V(BR)≥10V, ID are typically less than 1.0μA ?High temperature soldering guaranteed: 250°C/10 seconds at terminals |
| 描述与应用 |
特点 ?表面贴装瞬态电压抑制器 ?塑料包装有保险商实验室可燃性分类94V-0 ?对于表面安装的应用程序，以优化电路板空间 ?薄型包装 ?内置应变救灾 ?玻璃钝化结 ?低增量浪涌电阻 ?600W峰值脉冲功率能力与10/1000μS波形，重复率（占空比）：0.01％ ?出色的钳位能力 ?快速响应时间：通常小于1.0PS从0伏V（BR）单向和双向类型5.0ns ?对于设备与V（BR）≥10V，ID通常小于1.0μA ?高温焊接保证：250°C/10秒钟码头 |
