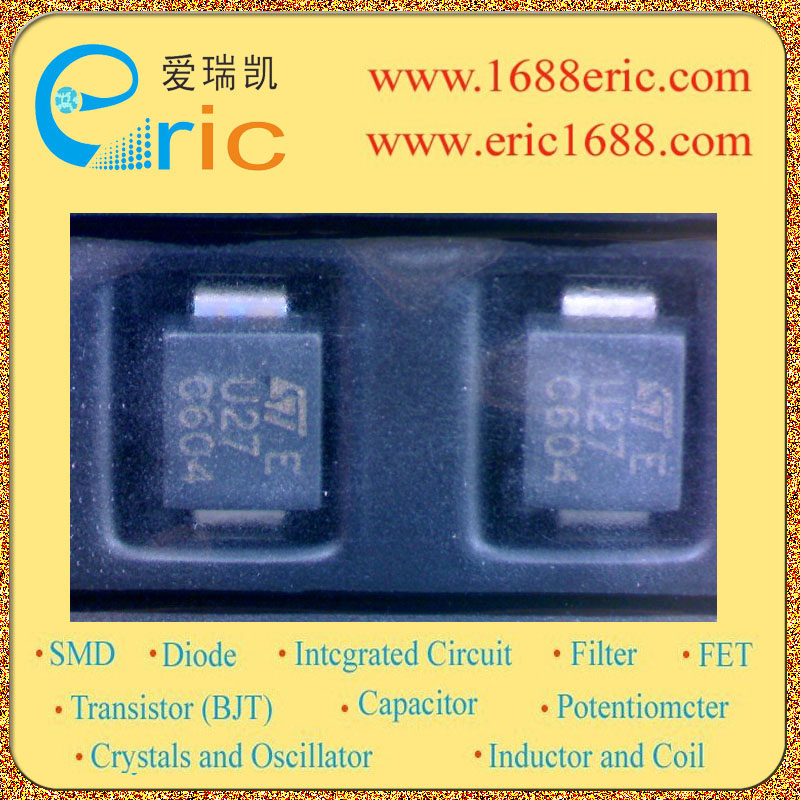

SMTPA200 U27 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
180V |
| 反向击穿电压VBR
Breakdown Voltage |
200V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
|
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
50A |
| 额定耗散功率Pd
Power dissipation |
5W |
| Description & Applications |
FEATURES ?BIDIRECTIONAL CROWBAR PROTECTION. ?BREAKDOWN VOLTAGE RANGE:From 62 V To 270 V. ?HOLDING CURRENT = 150 mA min ?REPETITIVE PEAK PULSE CURRENT :IPP = 50 A, 10/1000 μs. |
| 描述与应用 |
特点 ?双向撬棍保护。 ?击穿电压范围从62 V到270 V ?保持电流=150 mA最小 ?重复峰值脉冲电流IPP=50 A，10/1000微秒。 |
