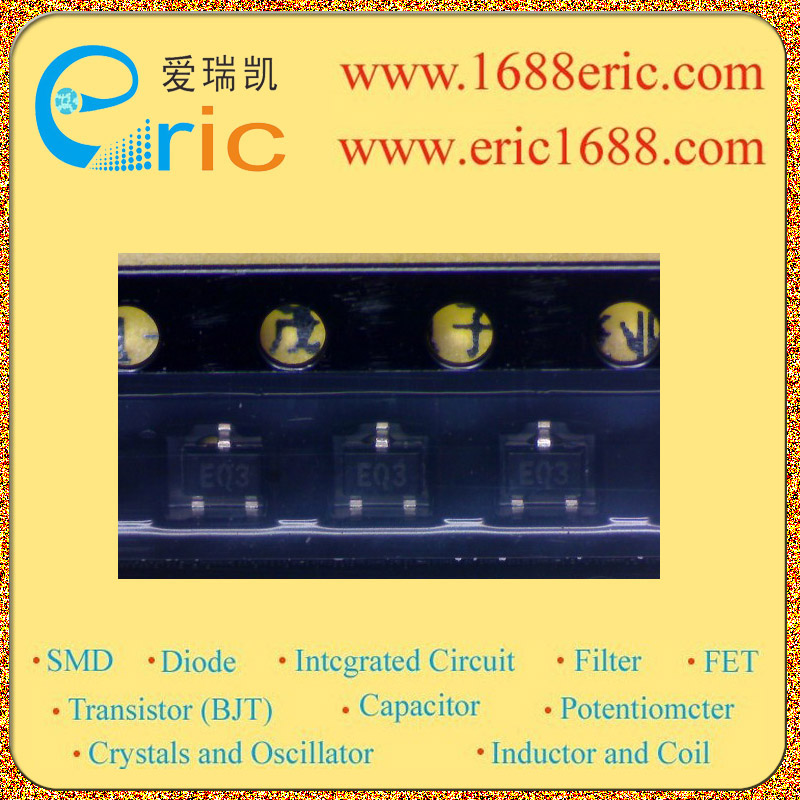

SMV1236-074LF E03 的参数 |
| 反向电压VR
Reverse Voltage |
15V |
| 电容值C
Diode capacitance |
15.5pF-18.5pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
9.2pF |
| @反向电压VR
@Reverse Voltage |
3V |
| 电容比
Capacitance ratio |
1.6-2.0 |
| Description & Applications |
Features ? Hyperabrupt Tuning Varactors ? High capacitance ratio ? Low series resistance for low phase noise ? Multiple packages SOT-23, SOD-323, SC-70 and SC-79 ? Designed for high volume commercial applications ? Full characterization with SPICE models |
| 描述与应用 |
特点 ?超突变调谐变容二极管 ?高电容率 ?低串联电阻，低相位噪声 ?多个封装SOT-23，SOD-323，SC-70，SC-79 ?专为大批量商业应用 ?与SPICE模型的完整描述 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| SMV1233-011 |
|
ALPHA |
05+ |
SOD-323/SC-76/0805 |
2450 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| SMV1233-011 |
|
ALPHA |
05+ |
SOD-323/SC-76/0805 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| SMV1235-074LF |
DR3 |
SKYWORKS |
05+NOPB |
SOT-323/SC-70 |
2800 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| SMV1236-004 |
AQ3 |
ALPHA |
05+ |
SOT-23/SC-59 |
9000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
| SMV1236-011 |
AQ |
SKYWORKS |
04+ |
SOD-323/SC-76/0805 |
1000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| SMV1236-074LF |
E03 |
SKYWORKS |
06+NOPB |
SOT-323/SC-70 |
3000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| SMV1236-004 |
AQ3 |
ALPHA |
00+ |
SOT-23/SC-59 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
|
|
|
