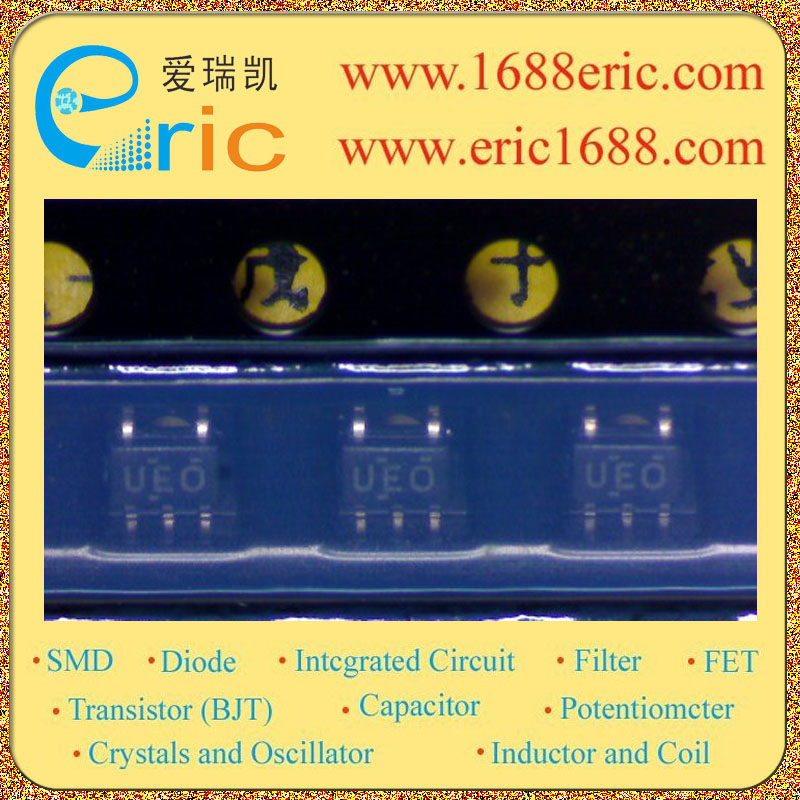

SN74AUC1G08DCKR UEK 的参数 |
| 逻辑类型
Logic Type |
与门 AND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
0.8v~2.7v |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
-9mA,9mA |
| 低逻辑电平
Logic Level - Low |
0.7v |
| 高逻辑电平
Logic Level - High |
1.7V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
0.5nS @ 2.5v 30pF |
| Description & Applications |
SINGLE 2-INPUT POSITIVE-AND GATE ; Available in the Texas Instruments ? Low Power Consumption, 10-μA Max I CC NanoFree? Package ? ±8-mA Output Drive at 1.8 V ? Optimized for 1.8-V Operation and Is 3.6-V I/O ? Latch-Up Performance Exceeds 100mA Per Tolerant to Support Mixed-Mode Signal JESD 78, Class II ? ESD Protection Exceeds JESD 22 Ioff Supports Partial-Power-Down Mode – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) ? Sub 1-V Operable – 1000-V Charged-Device Model (C101) ? Max t pd of 2.2 ns at 1.8 V |
| 描述与应用 |
单路2输入正与门; 德州仪器低功耗，10μA最大I CC NanoFree?包装?±8 mA输出驱动在1.8 V ?1.8-V操作优化，并为3.6-VI/ O?闭锁性能超过100mA每 耐支持混合模式信号JESD78，II类 ?ESD保护超过JESD22 IOFF支持部分掉电模式 - 2000-V人体模型（A114-A） - 200-V机型号（A115-A） ?子1-V可操作 - 1000-V带电器件模型（C101） ?最大t PD为2.2 ns在1.8 V |
