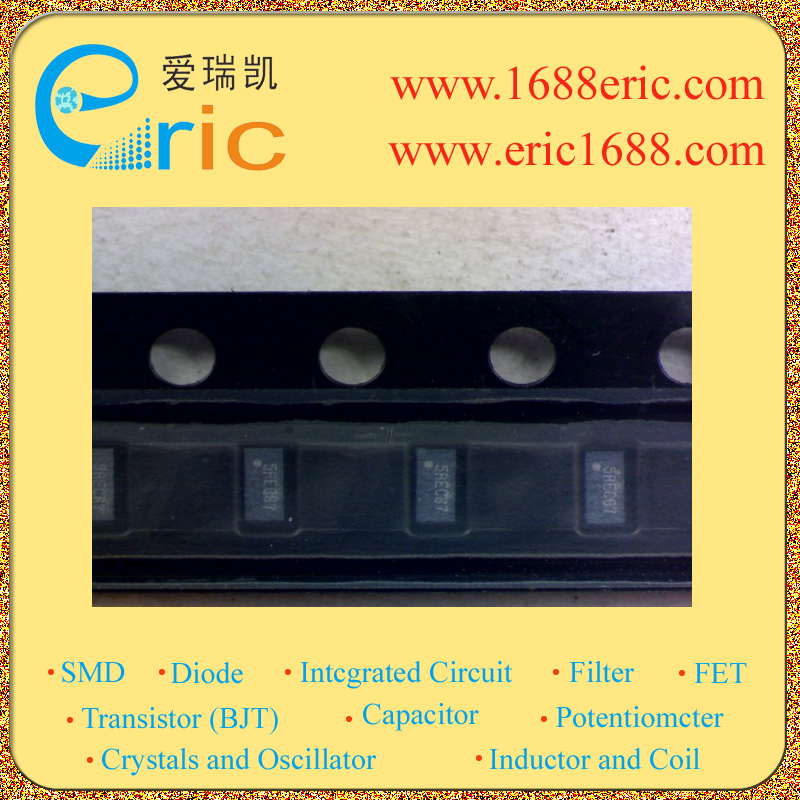

SN74LVC2G66YZTR 5AEC67 的参数 |
| 开关配置
Circuit |
2*单刀单掷 2*SPST |
| 导通电阻
On-State Resistance |
10Ω/Ohm |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| Description & Applications |
DUAL BILATERAL ANALOG SWITCH switch is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G66 can handle both analog and digital signals. The device permits signals with amplitudes of up to 5.5 V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems 1.65-V to 5.5-V VCC Operation Rail-to-Rail Input/Output Inputs Accept Voltages to 5.5 V Low On-State Resistance, Typically ≈6 ? (VCC = 4.5 V) |
| 描述与应用 |
双边双模拟开关 设备允许信号振幅 高达5.5 V（峰值）在任一方向发送。 应用包括信号门控，斩波调制或解调（调制解调器），和信号多路复用 模拟到数字和数字到模拟的转换系统。 1.65-V到5.5 V的VCC操作 轨到轨输入/输出 接受输入电压到5.5 V 低导通电阻，典型≈6Ω （VCC = 4.5 V） |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| SN74LVC2G66YZPR |
|
TEXAS |
5 |
DSBGA |
1000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74LVC2G66DCU6 |
C66R |
TEXAS |
06+PB |
VSSOP8/SOT765-1 |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74LVC2G66YZTR |
5AEC67 |
TEXAS |
05+ROHS |
WCSP8/DSBGA6 |
1400 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74LVC2G66DCU3 |
66CZ |
TEXAS |
05NOPB |
VSSOP8/SOT765-1 |
1000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| SN74LVC2G66YZPR |
5C |
TEXAS |
05NOPB |
DSBGA |
2000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
|
|
|
