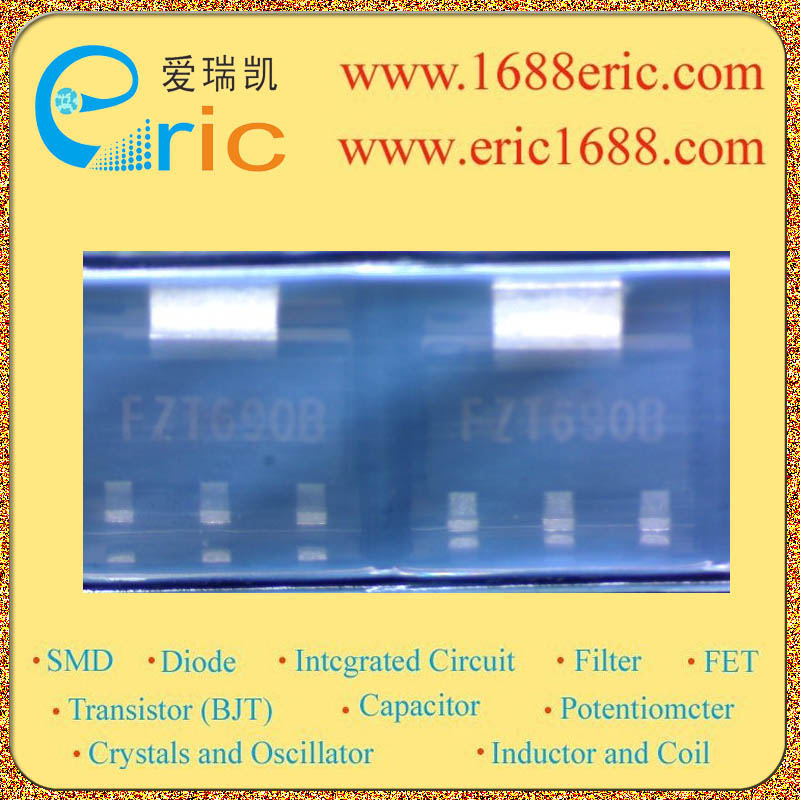

UFZT690BTA FZT690B 的参数 |
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
45V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
45V |
集电极连续输出电流IC
Collector Current(IC) |
3A |
截止频率fT
Transtion Frequency(fT) |
150MHz |
直流电流增益hFE
DC Current Gain(hFE) |
500 |
管压降VCE(sat)
Collector-Emitter Saturation Voltage |
500mV/0.5V |
耗散功率Pc
Power Dissipation |
2W |
Description & Applications |
NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR * Very low equivalent on-resistance; RCE(sat) 125m? at 2A * Gain of 400 at IC=1 Amp * Very low saturation voltage APPLICATIONS * Darlington replacement * Siren Drivers, DC-DC converters |
描述与应用 |
NPN硅平面中功率 高增益晶体管 *极低的等效导通电阻 * IC= 1放大器增益400 *极低的饱和电压应用 *达林顿更换 *警报器驱动器,DC-DC转换器 |
