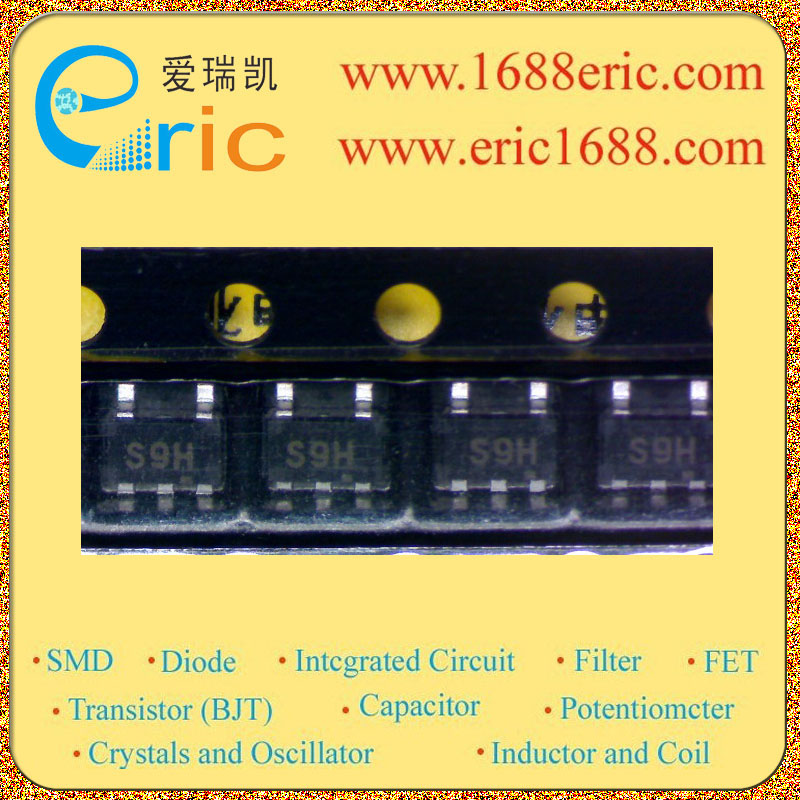

XC74UL4066MR S9 的参数 |
| 开关配置
Circuit |
单刀双掷 1*SPDT |
| 导通电阻
On-State Resistance |
22Ω/Ohm |
| 电源电压
Voltage - Supply |
2V~5.5V |
| Description & Applications |
CMOS Logic Analog Switch Operating Voltage Range 2V to 5.5V Low ON Resistance Ron=22? TYP XC74UL4066M is CMOS Analog Switch manufactured using silicon High Speed Operations gate CMOS processes. The small quiescent current digital signal switching. As the series is integrated into a mini molded, SOT-25 package, high Low Power Consumption density mounting is possible. Low ON Resistance 22? Applications： Palmtops Digital Equipment |
| 描述与应用 |
CMOS逻辑模拟开关 工作电压范围2V到5.5V 低导通电阻Ron=22Ω XC74UL4066M是使用硅高速操作栅CMOS工艺制造的CMOS模拟开关。静态电流小 数字信号切换。 由于该系列是集成到一个小型成型，SOT-25封装，低功耗高 密度安装是可能的。 低导通电阻22Ω 应用范围： 掌上电脑 数字设备 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| XC74UL04AANR |
T5N |
TOREX |
05+ |
SOT-353/SSOT-25/SC-88A |
600 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| XC74UL08AAMR |
S2 |
TOREX |
04+ |
SOT-153/SOT-25 |
1200 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| XC74UL08AANR |
T2 |
TOREX |
00+ |
SOT-353/SSOT-25/SC-88A |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| XC74UL4066MR |
S9 |
TOREX |
02+ |
SOT-153/SOT23-5 |
50 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| XC74UL86AAMR |
74H |
TOREX |
05+ |
SOT-163/SOT23-6 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| XC74UL86AANR |
T8N |
TOREX |
04+PB |
SOT-353/SSOT-25/SC-88A |
1000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| XC74ULU04ANR |
T6N |
TOREX |
03+ |
SOT-363/SON-6/SOT323-6/SC-88 |
500 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
