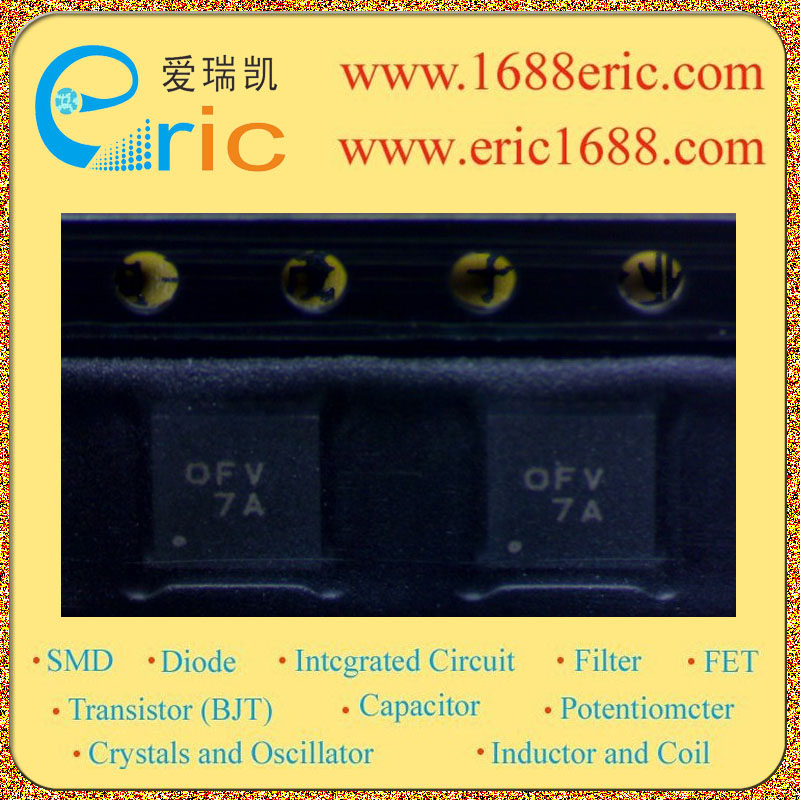

AAT2803ISK-4.5-T1
 型号:  AAT2803ISK-4.5-T1
 标记/丝印/代码/打字:  OF
 厂家:  ANALOGIC
 封装:  TDFN44-24
 批号:  07NOPB
 库存数量:  7691
 所属分类:  电源管理ICPower Management IC/PMIC
  LED驱动LED Driver
 技术文档PDF:  在线阅读

 在线购买
(Search Stock)
Send order to our E_mail:
saler28@mark-ic.com

AAT2803ISK-4.5-T1 OF 的参数

恒流 Constant Current
恒压 Constant Voltage
拓扑 Topology
输出数 Number of Outputs 6
内部驱动器 Internal Driver
初级类型 Type - Primary 背光 Backlight
次级类型 Type - Secondary 白色 LED White LED
频率 Frequency 1MHz
电源电压 Voltage - Supply 2.7V ~ 5.5V
输出电压 Voltage - Output 4.5V
Description & Applications FEATURES ? Six-Channel White LED Backlight Charge Pump with Flash ? VIN Range: 2.7V to 5.5V ? Dual Charge Pump: — Flash: Charge Pump Doubler — Backlight: Tri-Mode Charge Pump ? Backlight Charge Pump: — Programmable Current With Single GPIO — 16 Current Steps — 15/20/30mA Max Current — Four Low Current Settings — Individual Main/Sub-Group Control — Low IQ (50μA) for Low-Current Mode — Drives Six Channels of LEDs ? Flash Charge Pump: — Regulated VOUT_FL 4.5/5.0 Volts — Up to 300mA of Current for Flash ? 1MHz Constant Switching Frequency ? Independent Backlight/Flash Control ? Built-In Thermal Protection ? Built-In Auto-Disable for Open Circuit ? Automatic Soft Start ? IQ <1μA in Shutdown ? Available in QFN44-24 Package Applications ? Color (RGB) Lighting ? Programmable Current Sink ? White LED Backlighting ? White Photo Flash for Digital Still Cameras
描述与应用 特点 ?六通道白光LED背光电荷泵与Flash ?VIN范围:2.7V至5.5V ?双电荷泵: - 闪光灯:电荷泵倍增 - 背光:三模式电荷泵 ?背光电荷泵: - 可编程电流与单GPIO - 16当前步骤 - 15/20/30mA最大电流 - 四种低电流设置 - 个人主/子集团控制 - 低智商低电流模式(50μA) - 驱动6个通道的LED ?闪存电荷泵: - 稳压VOUT_FL4.5/5.0伏特 - 高达300mA的电流为Flash ?1MHz恒定开关频率 ?独立背光/闪光控制 ?内置热保护 ?内置自动禁用开路 ?自动软启动 ?IQ停机时<1uA ?提供QFN44-24封装 应用 ?彩色(RGB)照明 ?可编程电流源 ?白光LED背光 ?黑白照片闪光灯数码相机
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
AAT2807AIXN-4.5-T1 NW ANALOGIC 04+07nopb845 TDFN44-16 1716 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2803ISK-4.5-T1 OF ANALOGIC 07NOPB TDFN44-24 7691 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2805IXN-4.5-T1 NIV ANALOGIC 07NOPB TDFN44-16 11026 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2842AIBJ-EE-T1 UWV ANALOGIC 07NOPB TDFN44-28 5145 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2843AIBJ-EE-T1 UWV ANALOGIC 07NOPB TDFN44-28 0 电源管理ICPower Management IC/PMIC-其它Other 查看
AAT2842IBJ-EE-T1 UWV/TG ANALOGIC 07NOPB TQFN44-28 6966 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2847IML-EE-T1 YLV ANALOGIC 07NOPB TQFN34-20 25500 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2842INJ-EE-T1 XUV ANALOGIC 07NOPB TQFN44-28 87000 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2830IBK-T1 SUV ANALOGIC 07NOPB TQFN44-24 6483 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2842AINJ-EE-T1 XTV ANALOGIC 07NOPB TQFN44-28 1500 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2846INJ-EE-T1 UPV ANALOGIC 07NOPB TQFN44-28 2463 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2845IML-QG-T1 XEV ANALOGIC 07NOPB TQFN34-20 700 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2833IBK-T1 SVV ANALOGIC 07NOPB TQFN44-24 1340 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2856INJ-EE-T1 YFV ANALOGIC 07NOPB TQFN44-28 1374 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2801IXN-4.5-T1 MSV ANALOGIC 08NOPB TDFN44-16 959 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2845AIML-EE-T1 YEV ANALOGIC 08NOPB TQFN34-20 1297 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2845IML-QI-T1 XFV ANALOGIC 07NOPB TQFN34-20 370 电源管理ICPower Management IC/PMIC-LED驱动LED Driver 查看
AAT2845IML-EE-T1 UHV ANALOGIC 11+ROHS TQFN34-20 41743 集成电路ICIntegrated Circuit(IC)-电机和风扇控制器/驱动器Motor and Fan Controller/Driver 查看
