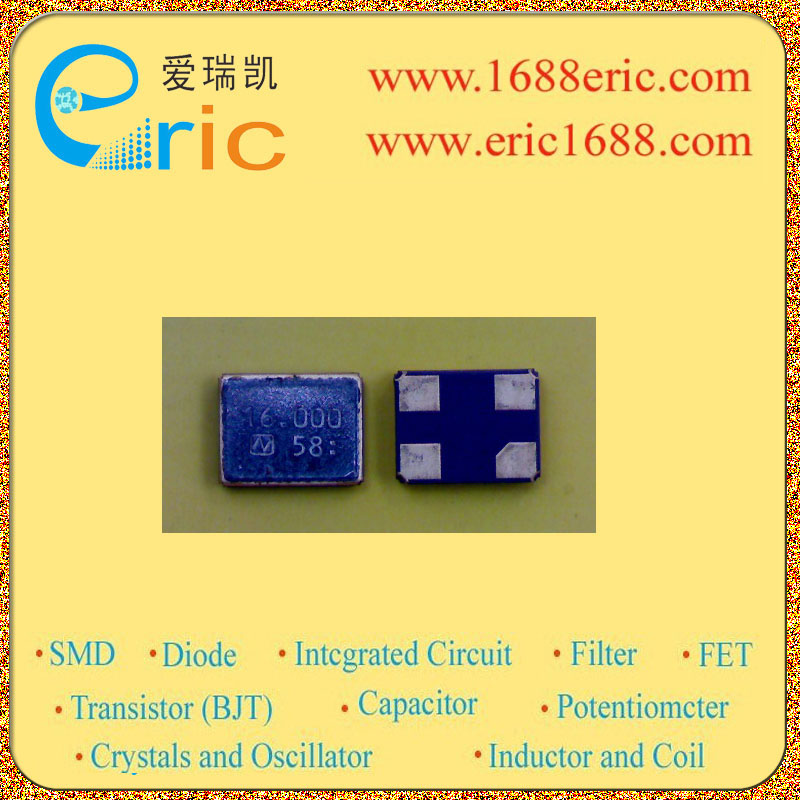

NX3225DA-16MHZ 16.000MHZ 的参数 |
| 标准频率
Frequency |
16.000MHz |
| 频率容差(ppm)
Frequency Tolerance |
±10ppm |
| 频率稳定性(ppm)
Frequency Stability |
±10ppm |
| 负载电容
Load Capacitance |
7.2pF |
| 串联电阻ESR
ESR (Equivalent Series Resistance) |
100Ω |
| 震荡模式
Operating Mode |
Fundamental |
| 频率老化
Ageing |
|
| Description & Applications |
SURFACE MOUNT TYPE CRYSTAL UNITS / NX3225DA This is ultra small surface mount type crystal unit. Features Ultra compact, thin and light weight (3.2 × 2.5 × 0.6 mm typ., 17mg typ.). Excellent heat resistance and environmental characteristics. Excellent electric performance optimum for OA (office automation), AV (audio & visual) and Bluetooth applications are exhibited. Products that are lead-free. These can meet the requirements of re-flow profiling using lead-free solder. |
| 描述与应用 |
表面贴装型晶体单元/ NX3225DA的 这是超小型表面贴装型晶体单元。 特点 超小型，超薄，重量轻（3.2×2.5×0.6毫米（典型值），为17mg，典型值）。 优良的耐热性和环保特性。 优良的电性能最佳的OA（办公自动化），??AV（视听）和蓝牙应用的展出。 无铅产品。这些能满足要求使用无铅焊料再流分析。 |
