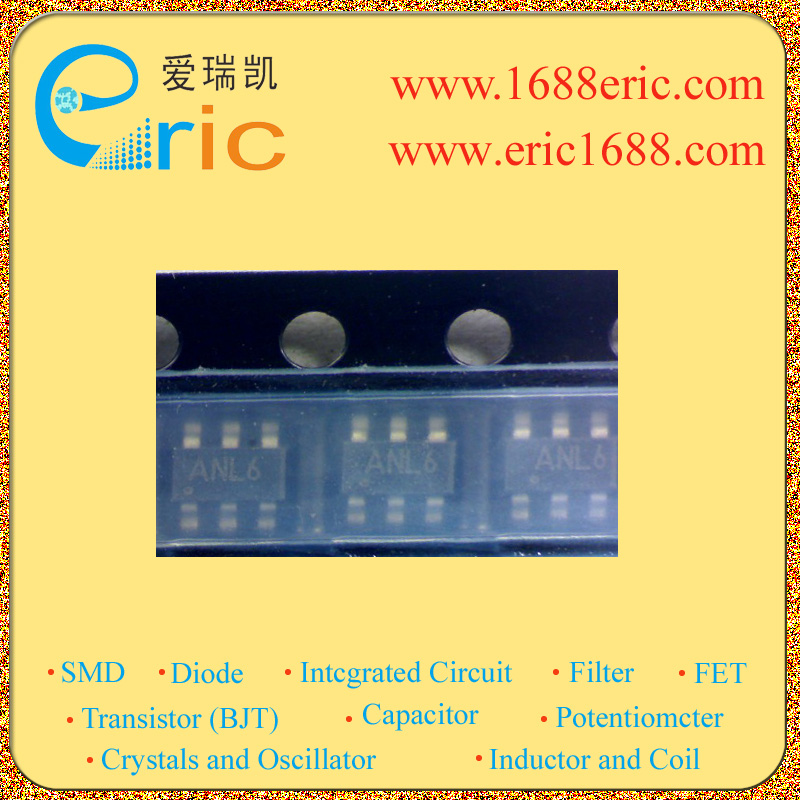

TC1220ECH718
 型号:  TC1220ECH718
 标记/丝印/代码/打字:  ANL6
 厂家:  MICROCHIP
 封装:  SOT-163/SOT23-6
 批号:  05+
 库存数量:  0
 所属分类:  电源管理ICPower Management IC/PMIC
  电荷泵Charge Pump
 技术文档PDF:  在线阅读

 在线购买
(Search Stock)
Send order to our E_mail:
saler28@mark-ic.com

TC1220ECH718 ANL6 的参数

功能 Type
工作电压 Voltage - Supply 2.5V ~ 5.5V
输出电压 Out Voltage 5V
输出电流 Output Current 50mA
效率 Efficiency(%) 96%
震荡频率 Oscillation Frequency 35kHz
Description & Applications FEATURES ? Switched Capacitor Voltage Converters with Shutdown in SOT Packages ? Charge Pumps in 6-Pin SOT-23A Package ? >95% Voltage Conversion Efficiency ? Voltage Inversion and/or Doubling ? Operates from +2.5V to +5.5V ? Up to 25mA Output Current ? Only Two External Capacitors Required ? Low Power Consumption ? Power-Saving Shutdown Mode ? TC1220 Compatible with 1.8V Logic Systems Applications ? LCD Panel Bias ? Cellular Phones ? Pagers ? PDAs, Portable Dataloggers ? Battery-Powered Devices
描述与应用 特点 ?开关电容电压转换器关机,SOT封装 ?6引脚SOT-23A封装的电荷泵 ?电压转换效率> 95% ?电压的反演和/或倍增 ?工作从+2.5 V至+5.5 V ?高达25mA的输出电流 ?仅需两个外部电容 ?低功耗 ?省电关断模式 ?TC1220兼容1.8V逻辑系统 应用 ?液晶面板偏置 ?蜂窝电话 ?寻呼机 掌上电脑,便携式数据记录仪 ?电池供电设备
技术文档PDF下载 在线阅读
