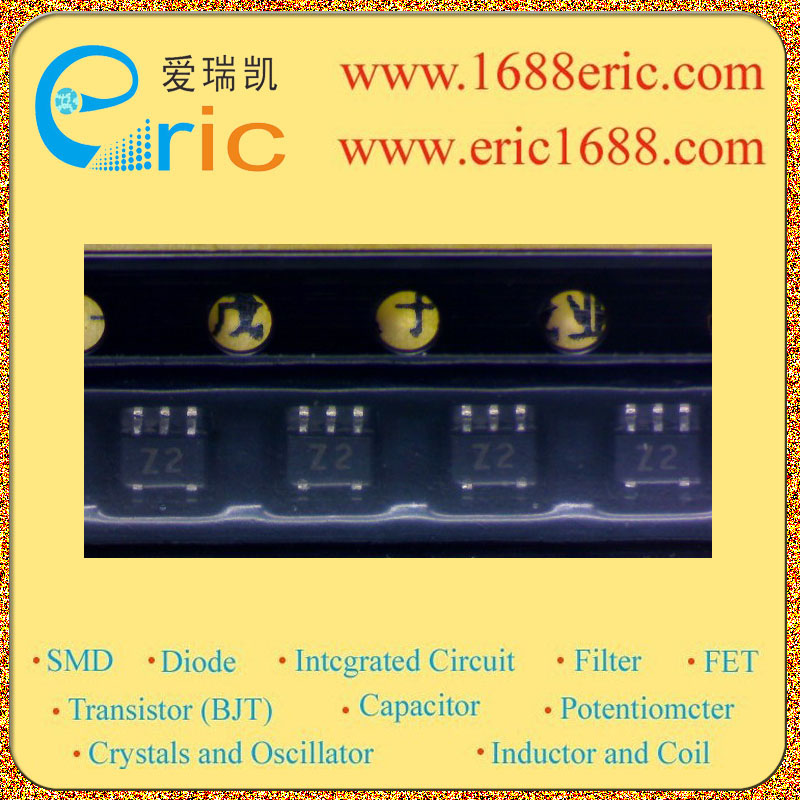

BZA862A Z2 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
6.2V |
| 反向击穿电压VBR
Breakdown Voltage |
|
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
|
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Quadruple ESD transient voltage suppressor;FEATURES ? ESD rating >15 kV, according to IEC1000-4-2 ? SOT457 surface mount package ? Common anode configuration ? Non-clamping range ?0.5 to 6.2 V ? Maximum reverse peak power dissipation:24 W at tp = 1 ms ? Maximum clamping voltage at peak pulse current:9 V at IZSM = 2.66 A. APPLICATIONS ? Computers and peripherals ? Audio and video equipment ? Communication systems ? Medical equipment. |
| 描述与应用 |
四ESD瞬态电压 抑制器;特点 ?ESD额定值> 15 kV，符合IEC1000-4-2 ?SOT457表面贴装封装 ?共阳极配置 ?非夹紧范围为-0.5至6.2 V ?最大反向峰值功耗：24 W在tp=1毫秒 ?最大钳位电压峰值脉冲电流：9 V在IZSM=2.66 A. 应用 ?电脑及周边 ?音频和视频设备 ?通信系统 ?医疗设备。 |
