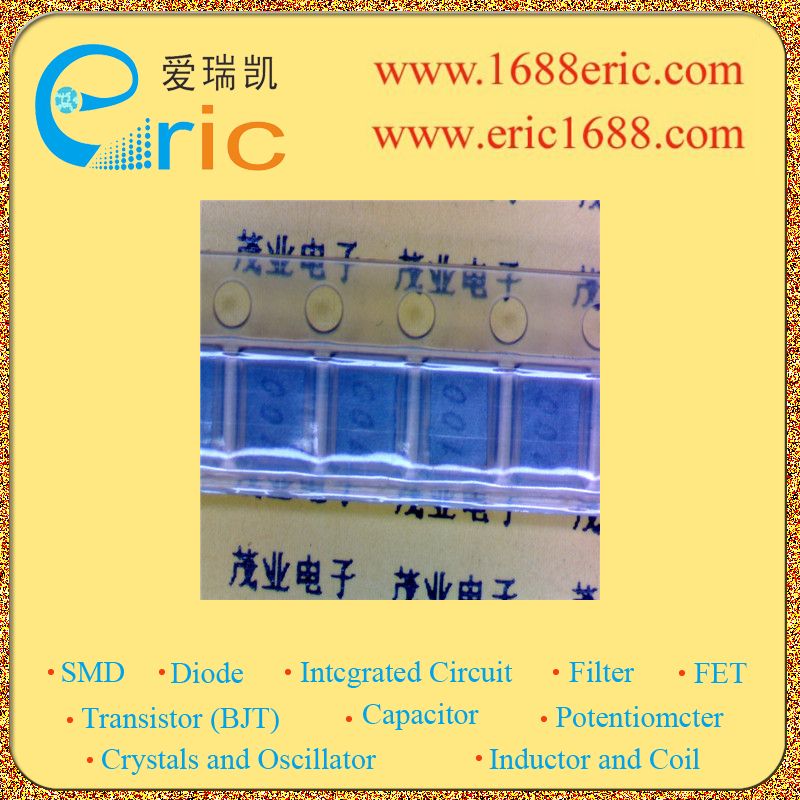

NLCV32T-100K-PF 的参数 |
| 电感值
Inductance |
10UH |
| 误差
Tolerance |
±10% |
| 额定电流
Current Rating |
450mA |
| 饱和电流
Current - Saturation |
|
| 不同频率时的Q值
Q @ Frequency |
15 @ 2.52MHz |
| 自振谐频率SRF
Frequency - Self Resonant |
30MHz |
| DC电阻DCR
DC Resistance (DCR) |
0.36Ω/Ohm |
| 屏蔽
Shielding |
无屏蔽 Unshielded |
| Description & Applications |
NLCV Series NLCV32 FEATURES ? This is a renewed version of NLC322522. ? The product has good heat durability that withstands lead-free compatible reflow soldering conditions. ? Lead-free material is used for the plating on the terminal ? The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. ? The product uses metal terminals, which realize excellent connection reliability. ? Highly heat resistant thermoplastic resin is used to form the exterior package. ? From 1.0μH to 330μH, all of the products are available. ? This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available. |
| 描述与应用 |
NLCV系列NLCV32 特点 这是一个新版本NLC322522。 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料是用于终端上的镀敷 电气特性，可靠性，形状和焊垫的形状是与前NL系列相同的。 该产品采用金属终端，实现良好的连接可靠性。 高耐热性的热塑性树脂。 从1.0μH到330μH。 本产品符合RoHS指令。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NLCV32T-101K-PF |
|
TDK |
05+rohs |
3225-101K |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-150K-PF |
|
TDK |
NOPB |
3225-150K |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-150K-PF |
|
TDK |
07+NOPB |
3225-150K |
31500 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-1R0M-PF |
|
TDK |
04+NOPB |
3225-1R0M |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-1R5M-PF |
|
TDK |
07NOPB |
3225-1R5M |
1800 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-101K |
|
TDK |
06+ |
3225-101K |
1000 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-100K-PF |
|
TDK |
08+rohs |
3225-100K |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLCV32T-100K-PF |
|
TDK |
07+NOPB |
3225-100K |
2844 |
电感Inductor/Coil/Choke-其它Other |
查看 |
| NLCV32T-151K-PFD |
|
TDK |
05+NOPB |
3225-151K |
2000 |
电感Inductor/Coil/Choke-其它Other |
查看 |
| NLCV32T-1R5M-PF |
|
TDK |
07NOPB |
3225-1R5M |
0 |
电感Inductor/Coil/Choke |
查看 |
| NLCV32T-1R0M-PF |
|
TDK |
04+NOPB |
3225-1R0M |
0 |
电感Inductor/Coil/Choke |
查看 |
|
|
|
