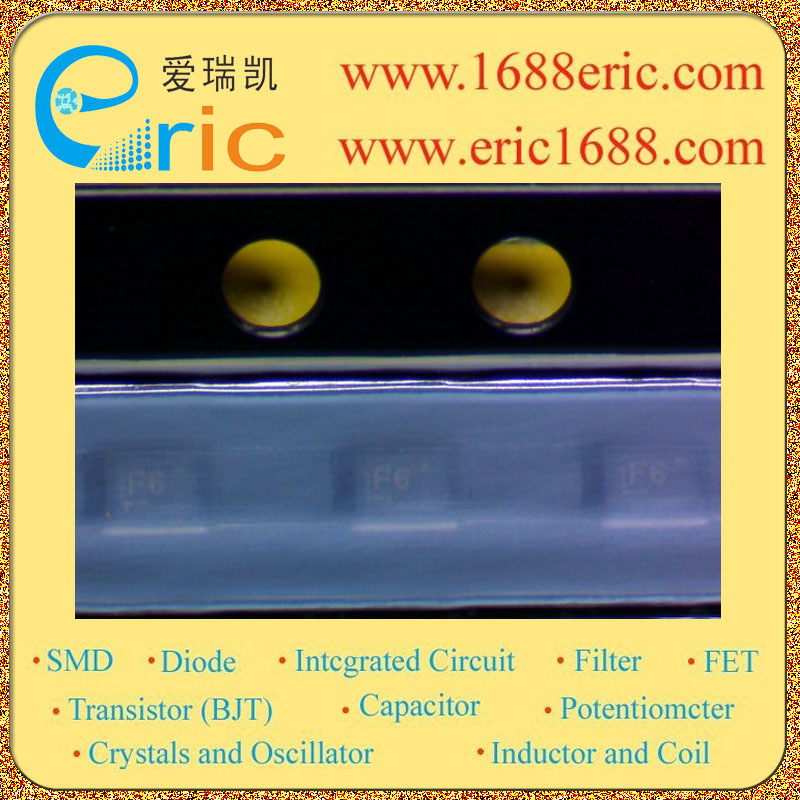

NC7SV02L6X F6 的参数 |
| 逻辑类型
Logic Type |
或非门 NOR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
0.9V~3.6V |
| 静态电流Iq
Current - Quiescent (Max) |
0.9uA |
| 输出高，低电平电流
Current - Output High, Low |
-24mA，24mA |
| 低逻辑电平
Logic Level - Low |
0.7V~0.8V |
| 高逻辑电平
Logic Level - High |
1.6V~2V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
3.3ns @ 2.7V~3.6V，30pF |
| Description & Applications |
Features TinyLogic? ULP-A 2-Input NOR Gate 0.9V to 3.6V VCC supply operation 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V Power-Off high impedance inputs and outputs Uses patented Quiet Series? noise/EMI reduction circuitry Ultra small MicroPak? leadfree package Ultra low dynamic power |
| 描述与应用 |
特性 TinyLogic?ULP-A2输入或非门 0.9V至3.6V的VCC电源操作 3.6V过压容限I/ O的VCC从0.9V到3.6V 电源关闭高阻抗输入和输出 采用专利的静音系列?噪声/ EMI抑制电路 超小型的MicroPak?无铅封装 动态功耗超低 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NC7SV04L6X |
F7 |
FAIRCHILD |
05+ |
6-UFDFN/TSOP6 |
314 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SV08L6X |
C3 |
FAIRCHILD |
06+ |
6-UFDFN/TSOP6 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SV08L6X |
C3 |
FAIRCHILD |
0612NOPB |
6-UFDFN/TSOP6 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SV02L6X |
F6 |
FAIRCHILD |
07NOPB |
6-UFDFN/TSOP6 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NC7SV02L6X |
F6 |
FAIRCHILD |
07+ROHS |
6-UFDFN/TSOP6 |
40000 |
集成电路ICIntegrated Circuit（IC） |
查看 |
|
|
|
