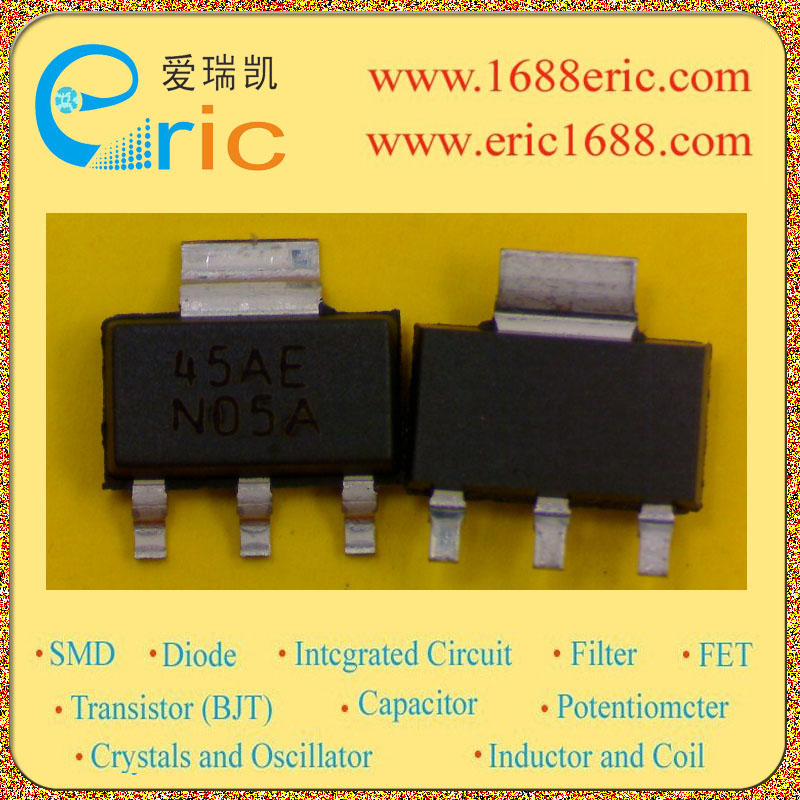

LM1117MPX-3.3 N05A 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
20V |
| 输出电压VOUT
Voltage - Output |
3.3V |
| 输出电流Io
Current - Output |
800mA/0.8A |
| 最大压降VDO
Voltage - Dropout |
1.2V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
800mA Low-Dropout Linear Regulator ；?Space Saving SOT-223 and LLP Packages ?Current Limiting and Thermal Protection ? Output Current 800mA ? Line Regulation 0.2% (Max) ?Load Regulation 0.4% (Max) ? Temperature Range — LM1117 0?C to 125?C — LM1117I ?40?C to 125?C ? Post Regulator for Switching DC/DC Converter ?High Efficiency Linear Regulators ? Battery Charger ? Battery Powered Instrumentation |
| 描述与应用 |
800mA低压降线性稳压器;?节省空间的SOT-223和LLP封装 ?电流限制和热保护 ?输出电流800mA 线路调整率0.2％（最大值） ?负载调整率0.4％（最大值） ?温度范围 - LM11170?C至125?C - LM1117I-40?C至125?C ?后稳压开关DC/ DC转换器 ?高效率线性稳压器 ?电池充电器 ?电池供电的仪器 |
