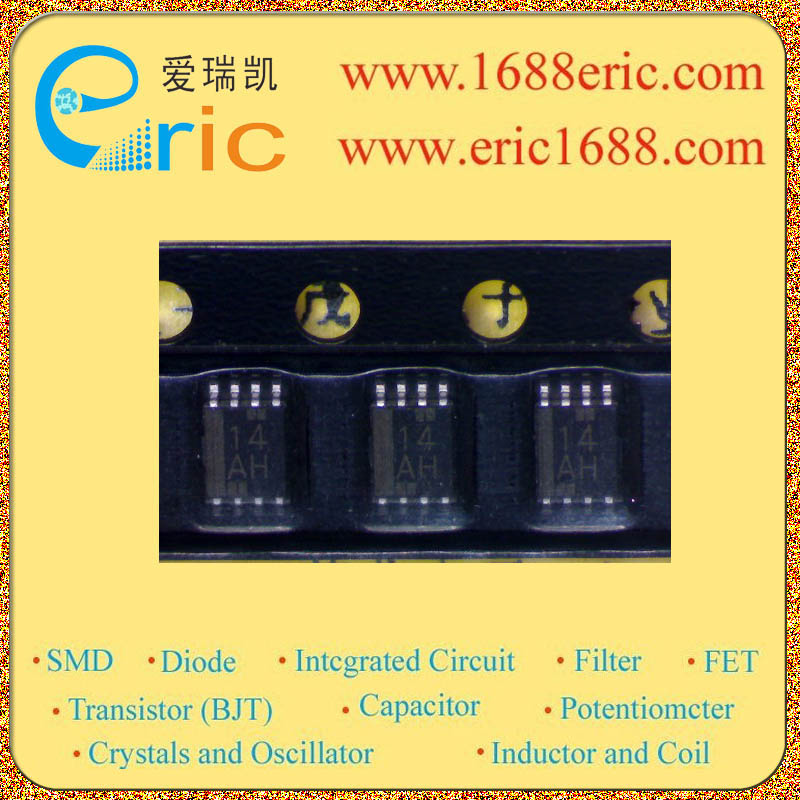

SN74AHC2G14HDCUR 14AH 的参数 |
| 逻辑类型
Logic Type |
反相施密特触发器 Inverting Schmitt trigger |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2v~5.5v |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
|
| 低逻辑电平
Logic Level - Low |
1.5v |
| 高逻辑电平
Logic Level - High |
3.5v |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
3.4nS @ 5V, 50pF |
| Description & Applications |
TRIPLE SCHMITT-TRIGGER GATE ;Operating Range 2-V to 5.5-V VCC Switching Speed Typ3.1ns(@ VCC=3.0V,CL=15pF) All inputs VIH(Max)=5.5V (@Vcc=0 to 5.5V) low power dissipation lcc (max) 1uA(@ T a=25C) |
| 描述与应用 |
三重施密特触发门;经营范围2-V到5.5 V的VCC 的开关速度Typ3.1ns（@ VCC= 3.0V，CL=15pF的） 所有输入VIH（最大）= 5.5V（VCC =0?5.5V） 低功耗LCC（最大值）微安（T A= 25°C） |
