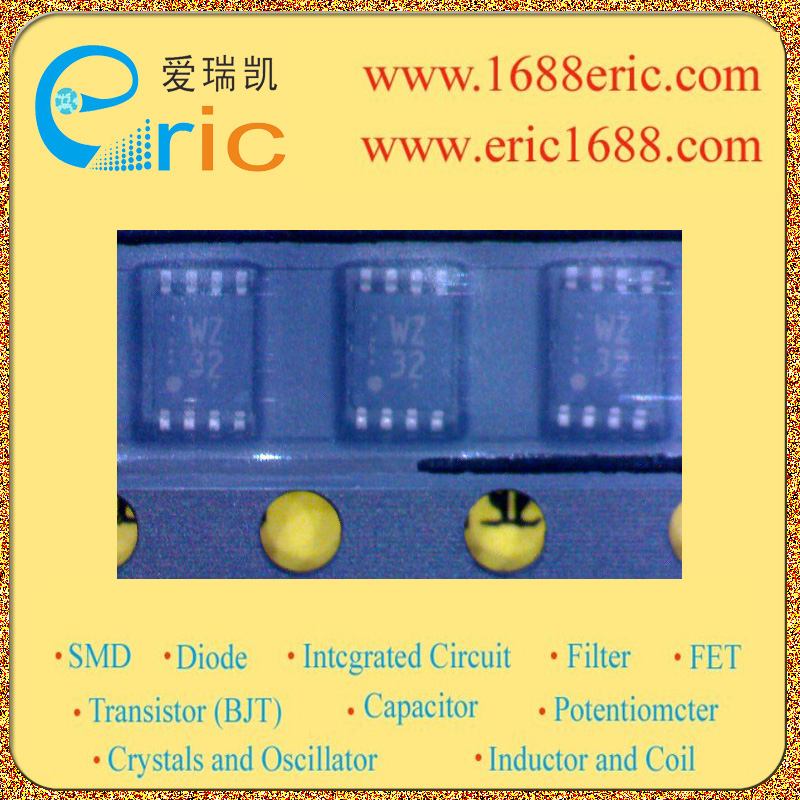

TC7WZ32FK wz32 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1μA |
| 输出高，低电平电流
Current - Output High, Low |
-24mA,24mA |
| 低逻辑电平
Logic Level - Low |
0.25v~0.3v |
| 高逻辑电平
Logic Level - High |
0.7v~0.75v |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
2.4ns @ 5V，50pF |
| Description & Applications |
2 Input or Gate ;High output drive: ±24 mA (min) @VCC = 3V Super high speed operation: tpd 2.4 ns (typ.) @VCC = 5 V, 50 pF Operation voltage range: VCC (opr) = 1.65~5.5 V Latch-up performance: ±500 mA or more ESD performance: ±200 V or more (JEITA) ±2000 V or more (MIL) Power down protection is provided on all inputs and outputs. Matches the performance of TC74LCX series when operated at 3.3 V VCC |
| 描述与应用 |
2输入或门;“高输出驱动：@ VCC= 5 V，±24 mA（分钟）@ VCC= 3V超高速度运行：TPD2.4纳秒（典型值）50 PF 工作电压范围：VCC（OPR）=1.65?5.5 V 闭锁性能：±500 mA或更大 ESD性能：±200 V或以上（JEITA） ??±2000 V以上（MIL） 掉电保护提供所有输入和输出。 ?操作时的性能相匹配的TC74LCX系列 在3.3 V VCC“ |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7WZ32FK |
WZ32 |
TOSHIBA |
05+ |
US8 |
500 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7WZ32FU |
Z32 |
TOSHIBA |
05+NOPB4RM |
SM8 |
12000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7WZ34FK |
WZ34 |
TOSHIBA |
05+NOPB2500 |
US8 |
17000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| TC7WZ34FU |
Z34 |
TOSHIBA |
05+ |
SM8 |
45 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| TC7WZ34FK |
|
TOSHIBA |
05+ |
US8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| TC7WZ34FU |
Z34 |
TOSHIBA |
05+ |
SM8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| TC7WZ32FK |
wz32 |
TOSHIBA |
14+ROHS |
US8 |
6000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
