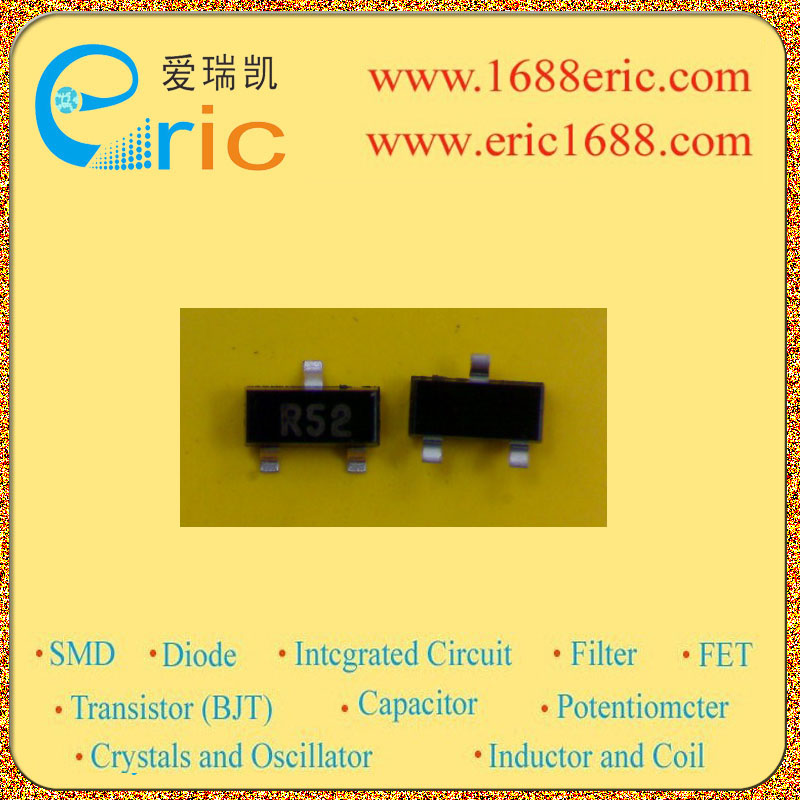

KSR2102MTF R52 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
-100mA/-0.1A |
| 基极输入电阻R1
Input Resistance(R1) |
10KΩ/Ohm |
| 基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
10KΩ/Ohm |
| 电阻比(R1/R2)
Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
30 |
| 截止频率fT
Transtion Frequency(fT) |
200MHz |
| 耗散功率Pc
Power Dissipation |
0.2W/200mW |
| Description & Applications |
FEATURES ? Switching circuit, Inverter, Interface circuit, Driver Circuit ? Built in bias Resistor (R1=10K?, R2=10K?) ? Complement to KSR1102 |
| 描述与应用 |
特点 ?开关电路，逆变器，接口电路，驱动器电路 ?内置偏置电阻（R1=10KΩ，R2=10KΩ） ?KSR1102补 |
